Component Inspection: Condenser

  1. Turn ignition switch OFF.
  2. Disconnect condenser harness connector.
  3. Check resistance between condenser terminals as 1 and 2.

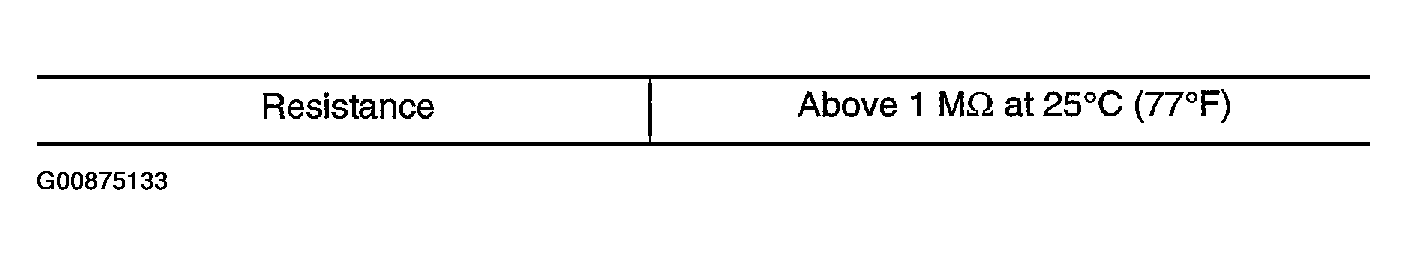

Fig 1: Resistance Specifications
G00875133Courtesy of NISSAN MOTOR CO., U.S.A.

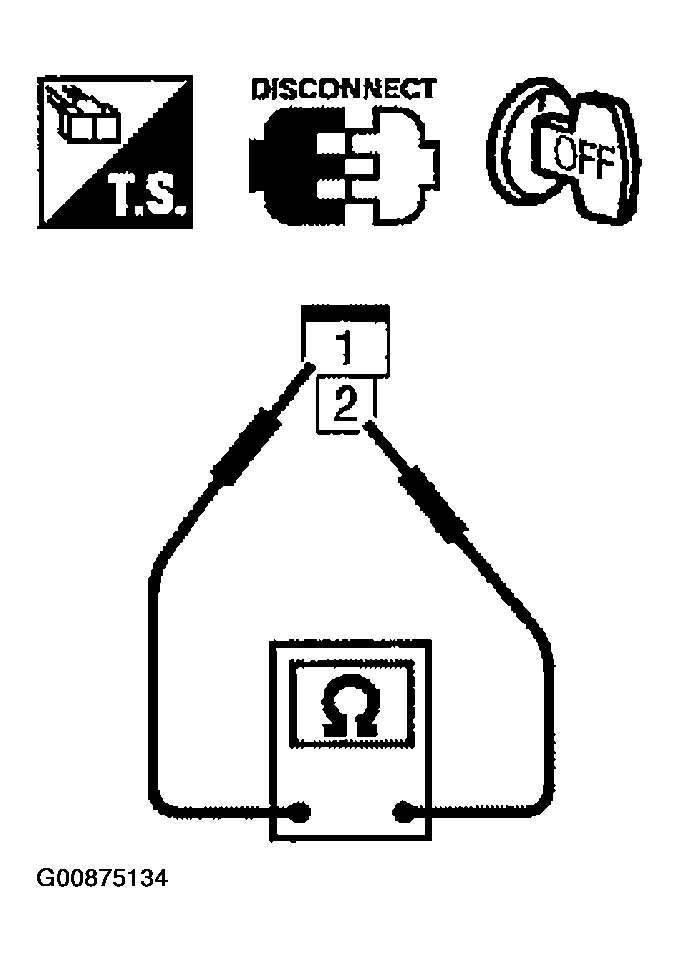

Fig 2: Check resistance
G00875134Courtesy of NISSAN MOTOR CO., U.S.A.
