Ignition Coil With Power Transistor

  1. Turn ignition switch OFF.
  2. Disconnect ignition coil harness connector.
  3. Check resistance between ignition coil terminals as follows.

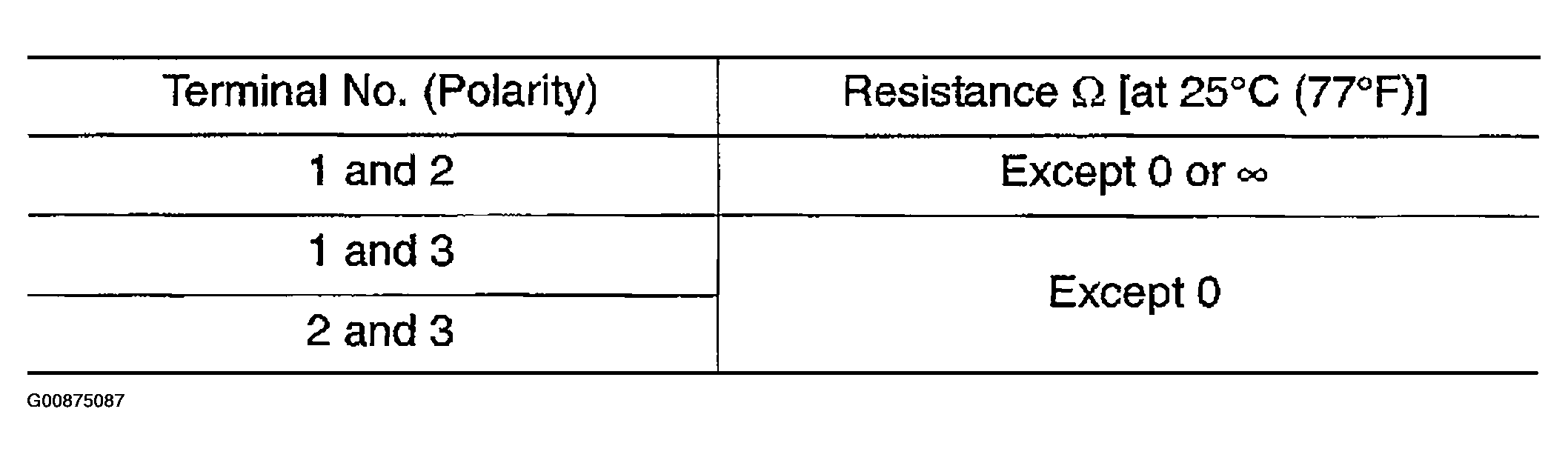

Fig 1: Test Specifications
G00875087Courtesy of NISSAN MOTOR CO., U.S.A.

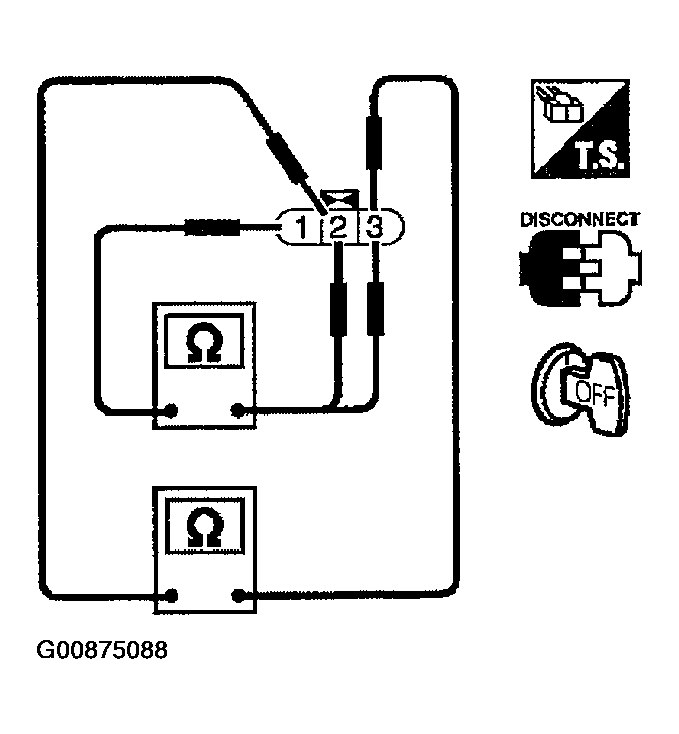

Fig 2: Check Resistance Between Ignition Coil Terminals
G00875088Courtesy of NISSAN MOTOR CO., U.S.A.
