Component Inspection: Injector

  1. Disconnect injector harness connector.
  2. Check resistance between terminals as shown in Fig 1.
    1. Resistance: 13.5 - 17.5Ω [at 20°C (68°F)]

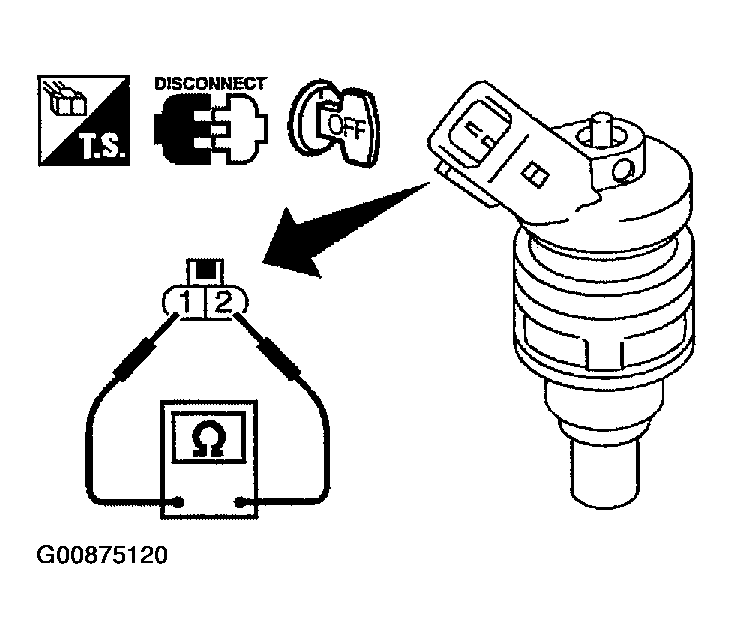

Fig 1: Check Resistance
G00875120Courtesy of NISSAN MOTOR CO., U.S.A.
