Home >> Nissan-Datsun >> 2004 >> Maxima SE, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - System & Component Testing >> VIAS >> Component Inspection >> Vacuum Tank

Vacuum Tank

  1. Disconnect vacuum hose connected to vacuum tank.
  2. Connect a vacuum pump to the center port of vacuum tank.
  3. Apply vacuum and make sure that vacuum exists at the other port.

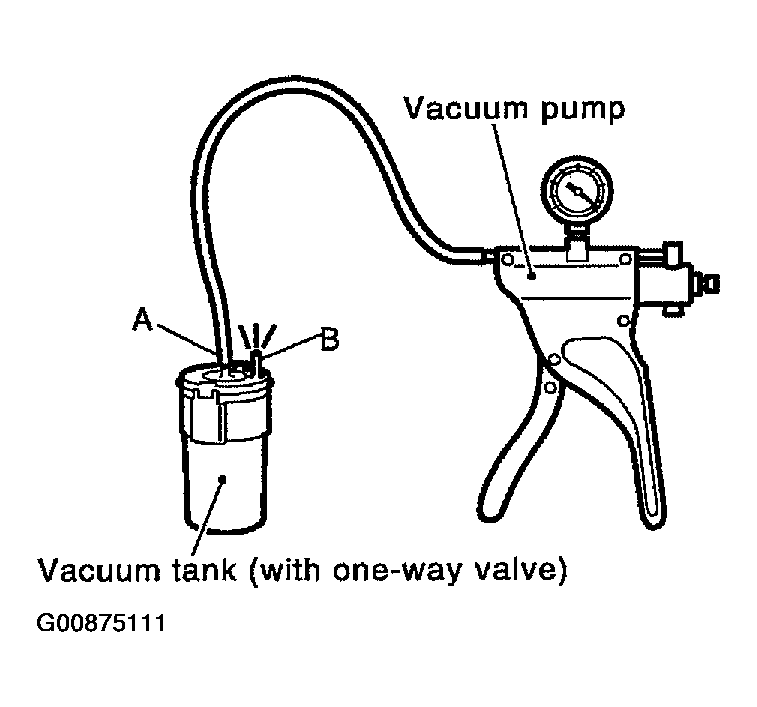

Fig 1: Checking Vacuum Tank
G00875111Courtesy of NISSAN MOTOR CO., U.S.A.
