Without CONSULT-II

1. Start engine and warm it up to normal operating temperature.
2. Rev engine quickly up to above 5,000 RPM and make sure that power valve actuator rod moves.

OK or NG

1. OK : INSPECTION END  .
2. NG (With CONSULT-II) : GO TO 2.
3. NG (Without CONSULT-II) : GO TO 3 .

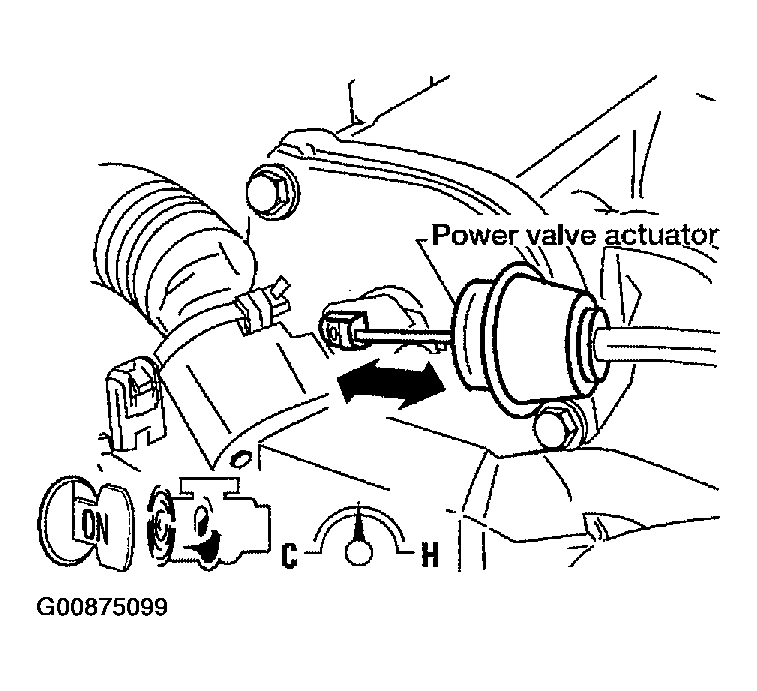

Fig 1: making sure that power valve actuator rod moves

Courtesy of NISSAN MOTOR CO., U.S.A.
