Ignition Timing

Any of following two methods may be used.

• Method A

1. Attach timing light to loop wire as shown.
2. Check ignition timing.

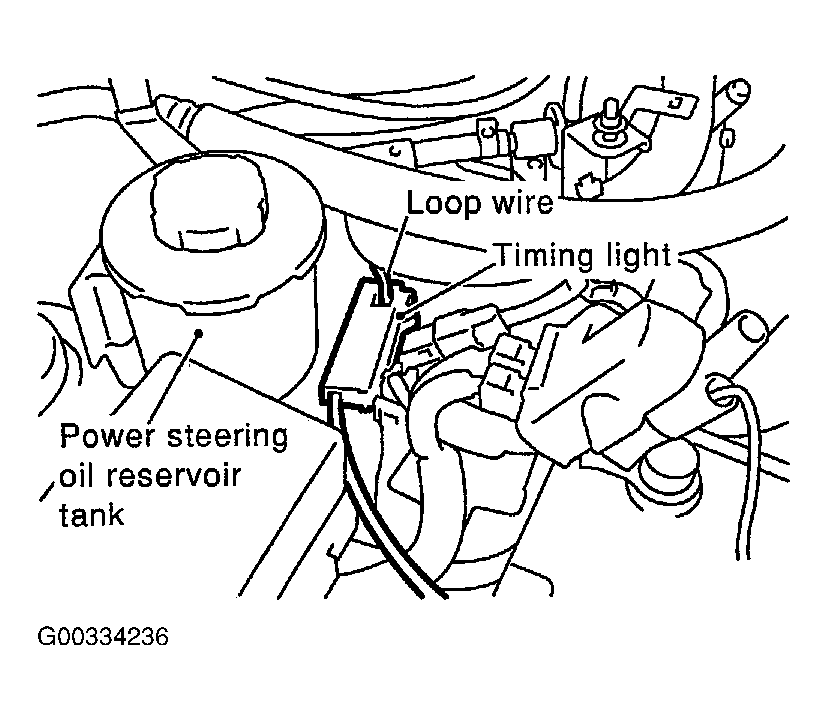

   Fig 1: Identifying Timing Light And Loop Wire

   Courtesy of NISSAN MOTOR CO., U.S.A.

• Method B

1. Remove No. 1 ignition coil.

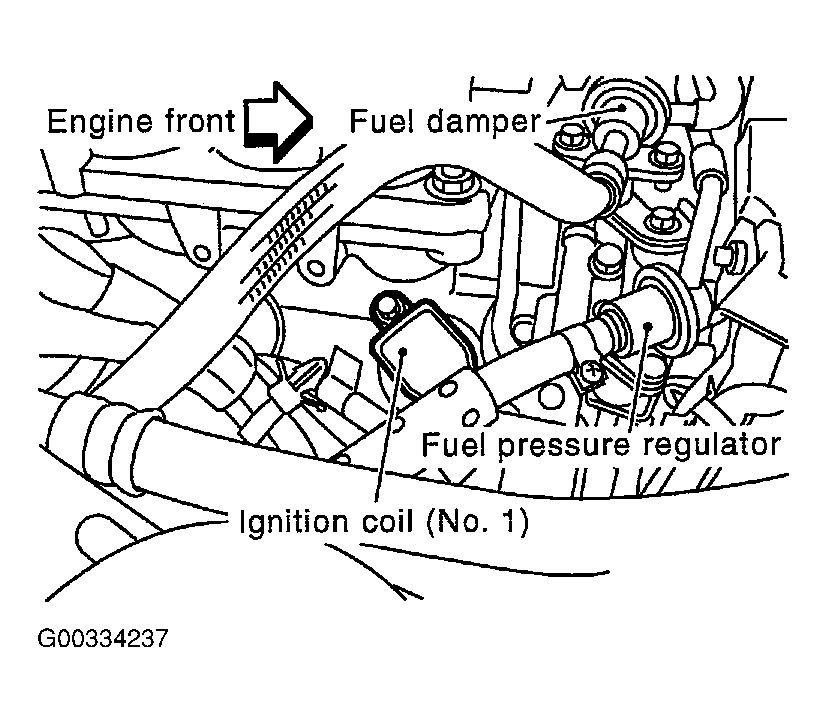

   Fig 2: Removing No. 1 Ignition Coil.

   Courtesy of NISSAN MOTOR CO., U.S.A.
2. Connect No. 1 ignition coil and No. 1 spark plug with suitable high-tension wire as shown, and attach timing light clamp to this wire.
3. Check ignition timing.

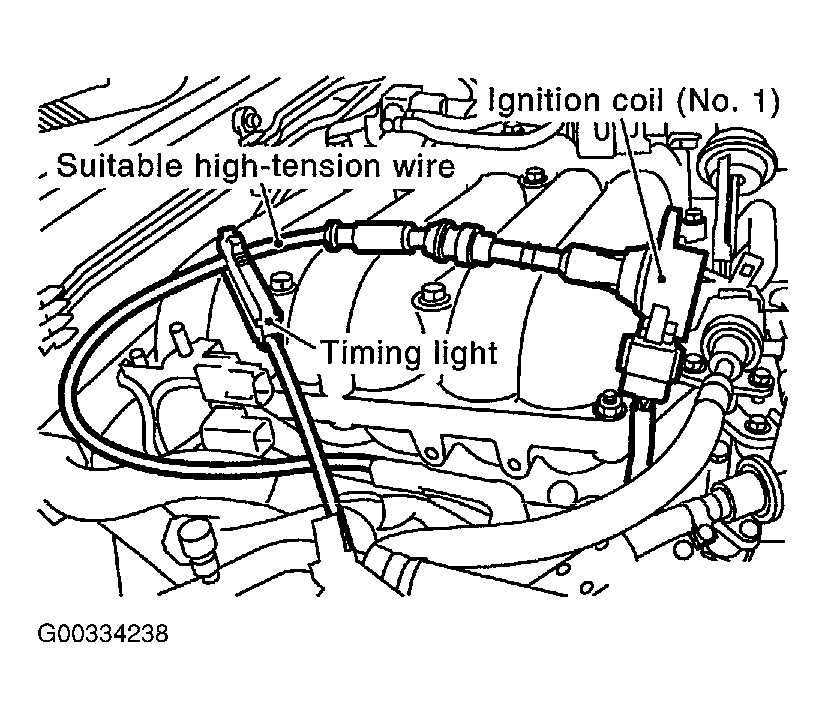

   Fig 3: Connect No. 1 Ignition Coil And No. 1 Spark Plug With Suitable High-Tension Wire

   Courtesy of NISSAN MOTOR CO., U.S.A.

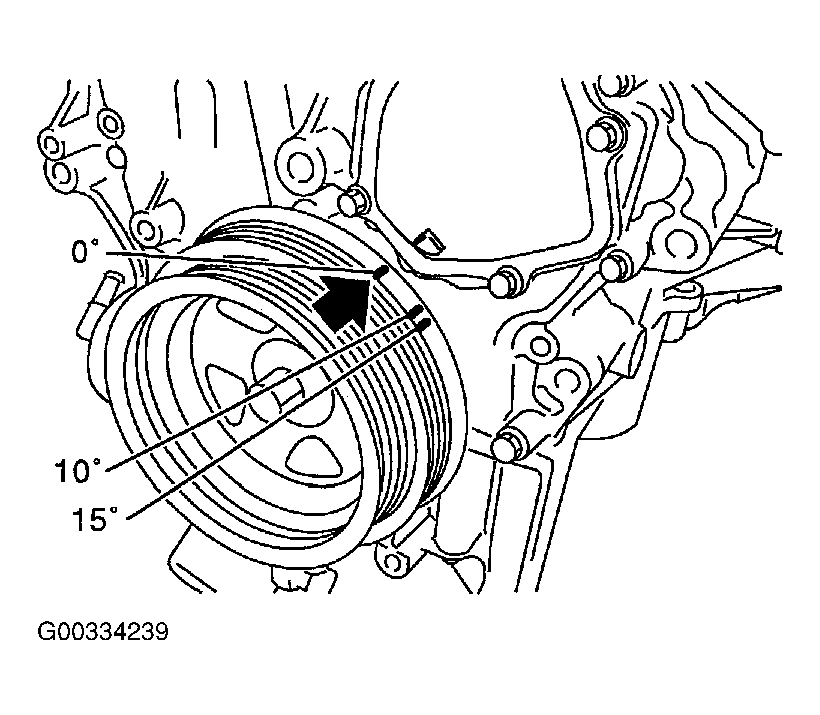

   Fig 4: Checking Ignition Timing

   Courtesy of NISSAN MOTOR CO., U.S.A.

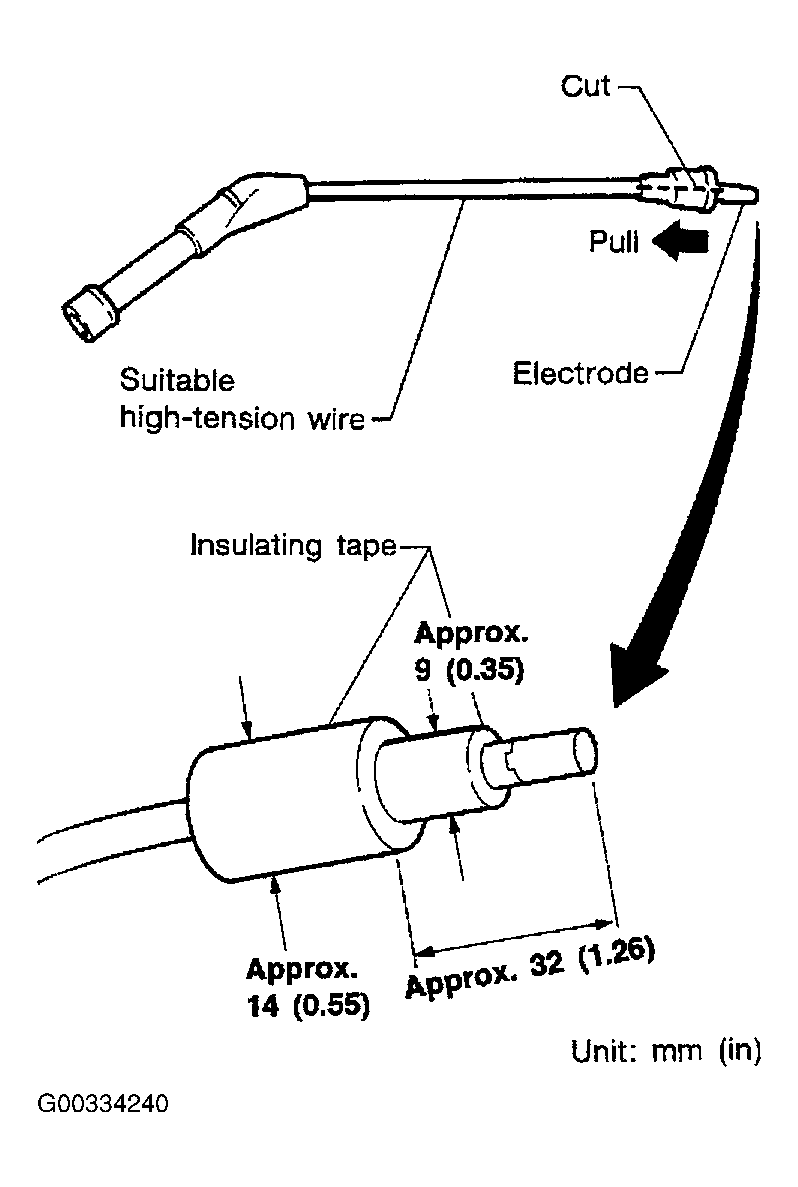

   Fig 5: Identifying High Tension Wire

   Courtesy of NISSAN MOTOR CO., U.S.A.
