With GST

  1. Turn ignition switch ON.
  2. Check voltage between ECM terminal 102 and body ground under the following conditions.

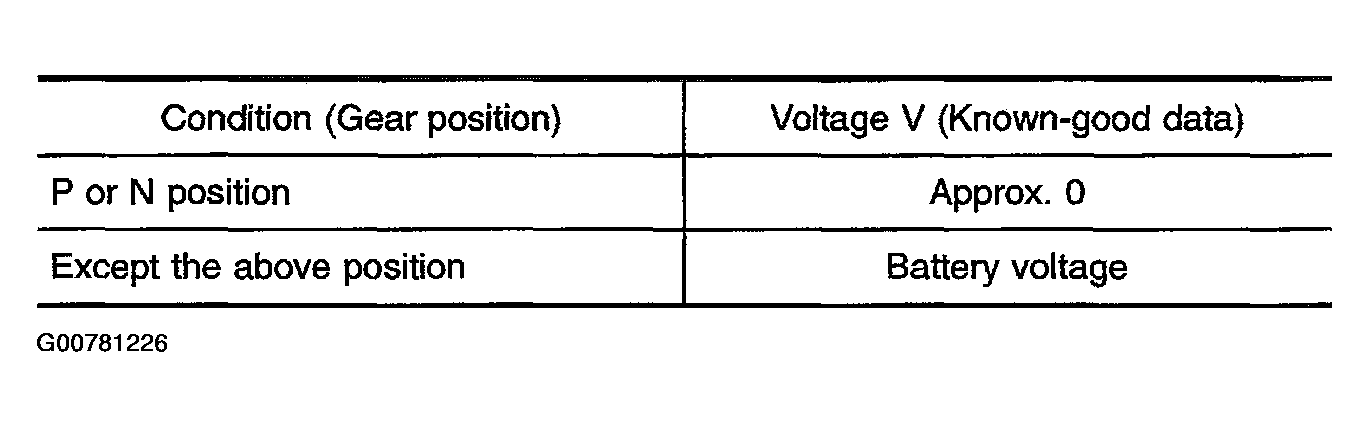

    Fig 1: PNP Switch Condition And Voltage Chart
    G00781226Courtesy of NISSAN MOTOR CO., U.S.A.

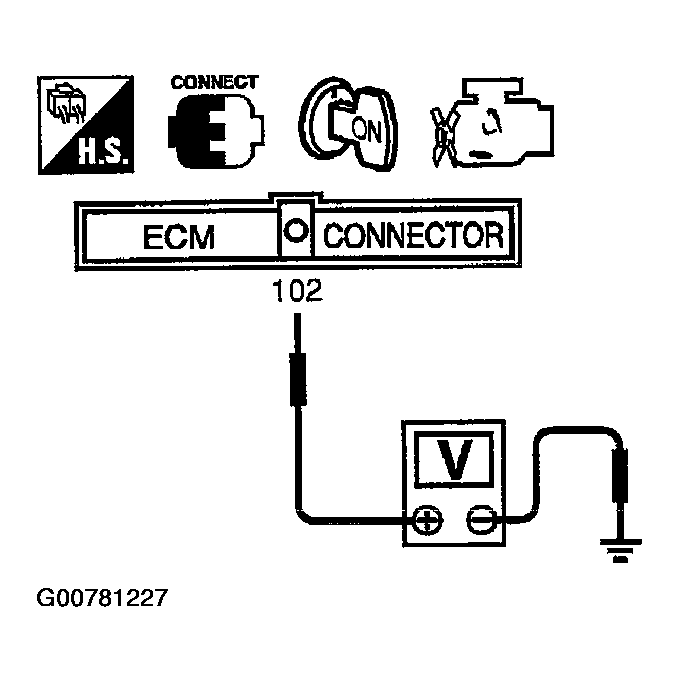

    Fig 2: Checking Voltage Between ECM Terminal 102 And Body Ground
    G00781227Courtesy of NISSAN MOTOR CO., U.S.A.
  3. If NG, go to "DIAGNOSTIC PROCEDURE  " .
