Engine Control Component Parts Location

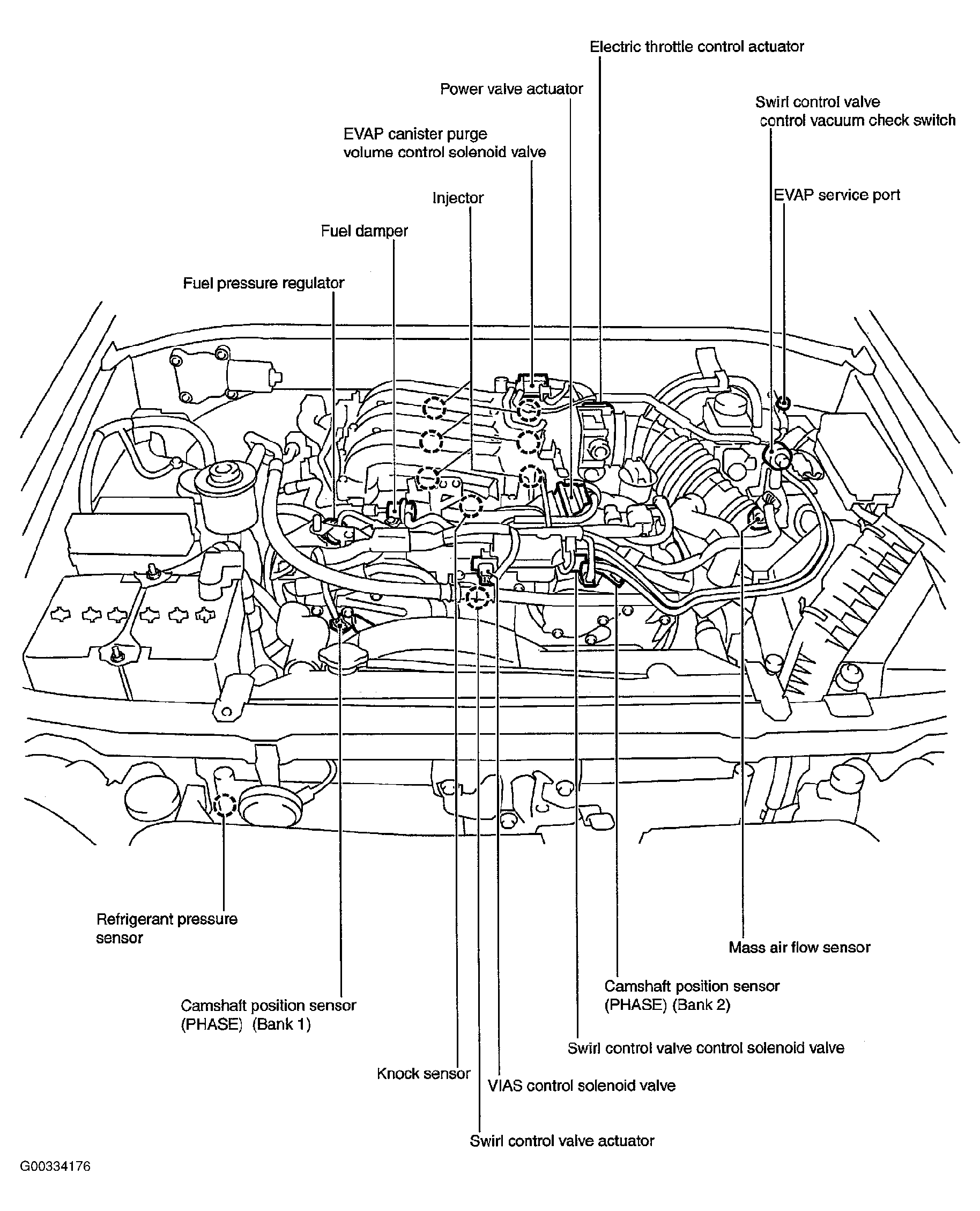

Fig 1: Identifying Engine Control Component Parts Location

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Identifying Engine And Emission Control Overall System (1 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Identifying Engine And Emission Control Overall System (2 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Identifying Engine And Emission Control Overall System (3 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Identifying Engine And Emission Control Overall System (4 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 6: Identifying Engine And Emission Control Overall System (5 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.
