Trouble Diagnosis - Introduction
>>
Work Flow
Work Flow

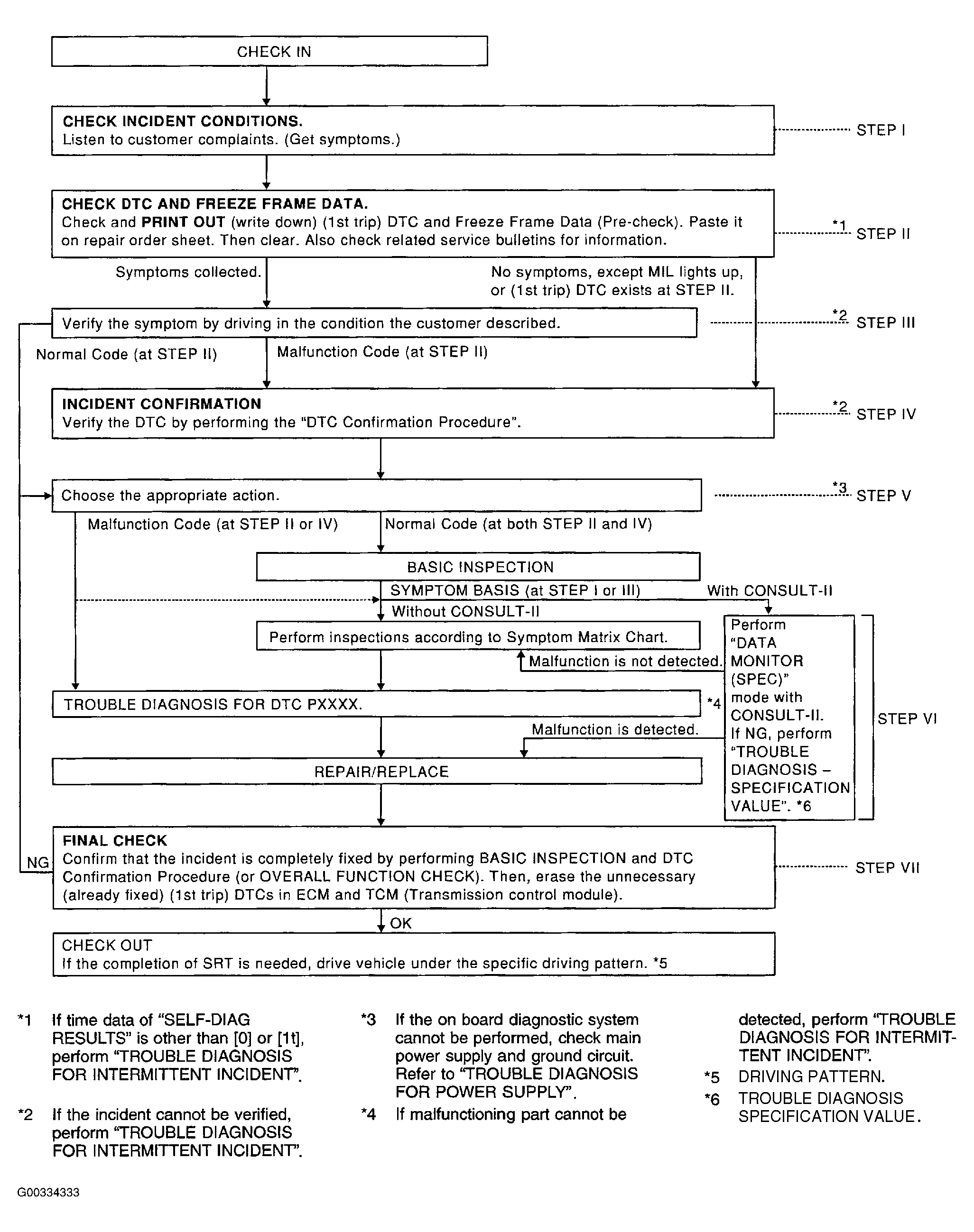

Fig 1: Work Flow Chart (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: Work Flow Chart (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
