Intake Air Temperature Sensor

Check resistance between intake air temperature sensor terminals 5 and 6 under the following conditions.

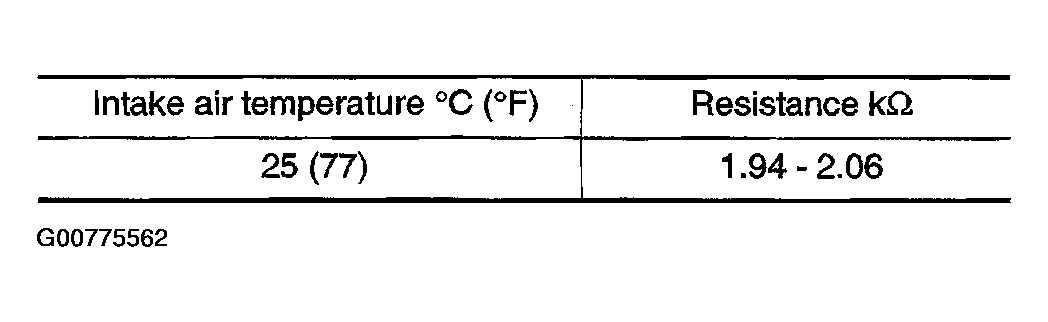

Fig 1: Resistance Between Intake Air Temperature Sensor Terminals
Courtesy of NISSAN MOTOR CO., U.S.A.
If NG, replace mass air flow sensor (with intake air temperature sensor).

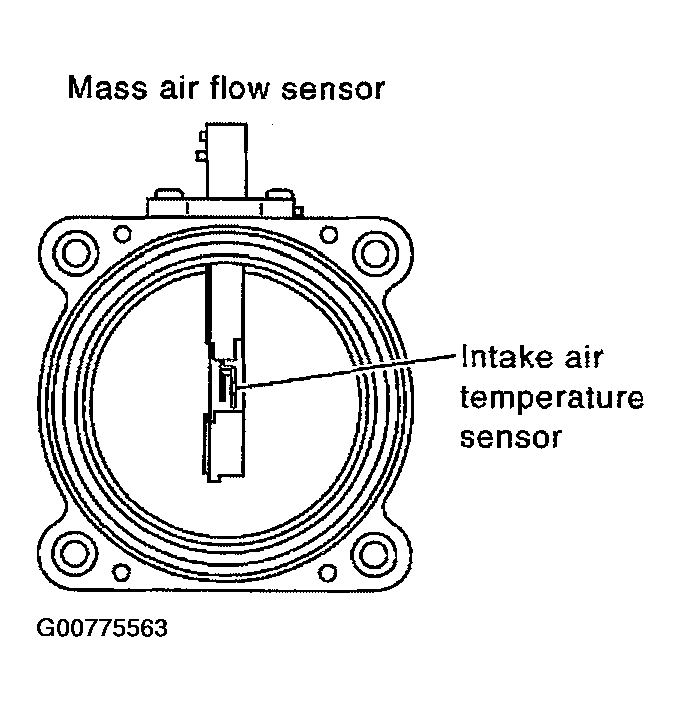

Fig 2: Identifying Intake Air Temperature Sensor Components
Courtesy of NISSAN MOTOR CO., U.S.A.

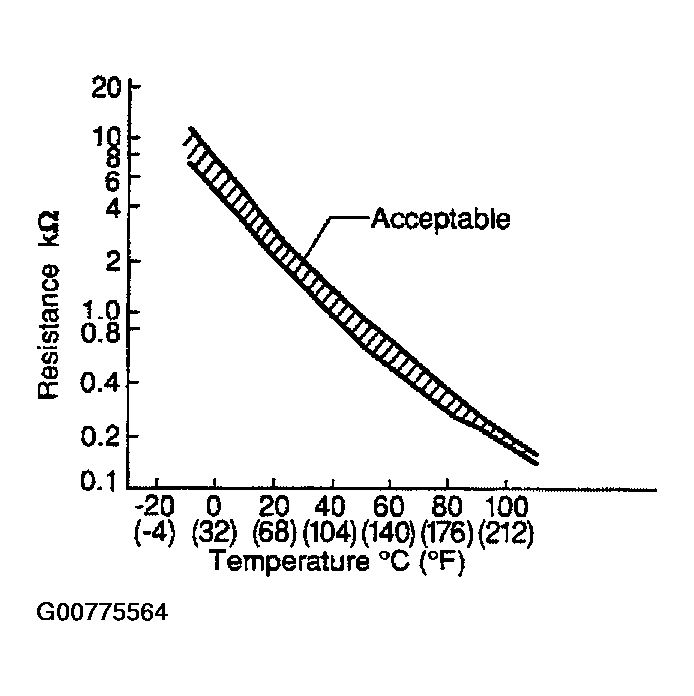

Fig 3: Acceptable Resistance And Temperature Graph
Courtesy of NISSAN MOTOR CO., U.S.A.
