Diagnostic Procedure

1. Turn ignition switch OFF.
2. Loosen and retighten ground three screws on the body. Refer to GROUND INSPECTION  .

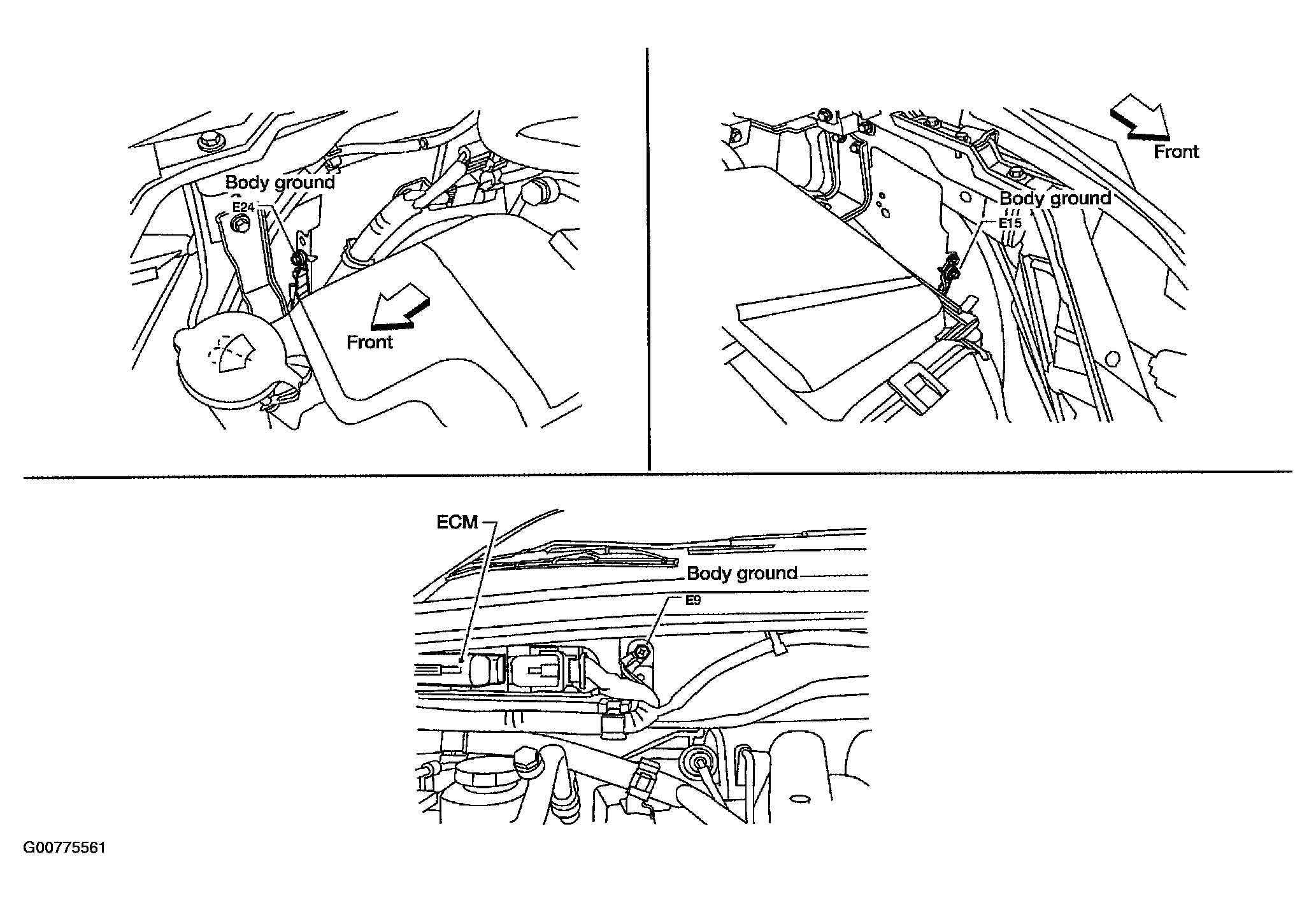

   Fig 1: Checking Ground Connections

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK: GO TO 2.
2. NG: Repair or replace ground connections.

Refer to COMPONENT INSPECTION  .

OK or NG

1. OK: GO TO 3.
2. NG: Replace mass air flow sensor (with intake air temperature sensor).

Refer to TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT  .

Refer to WIRING DIAGRAM  .

1. INSPECTION END
