Consult-II Reference Value In Data Monitor Mode

Specification data are reference values.

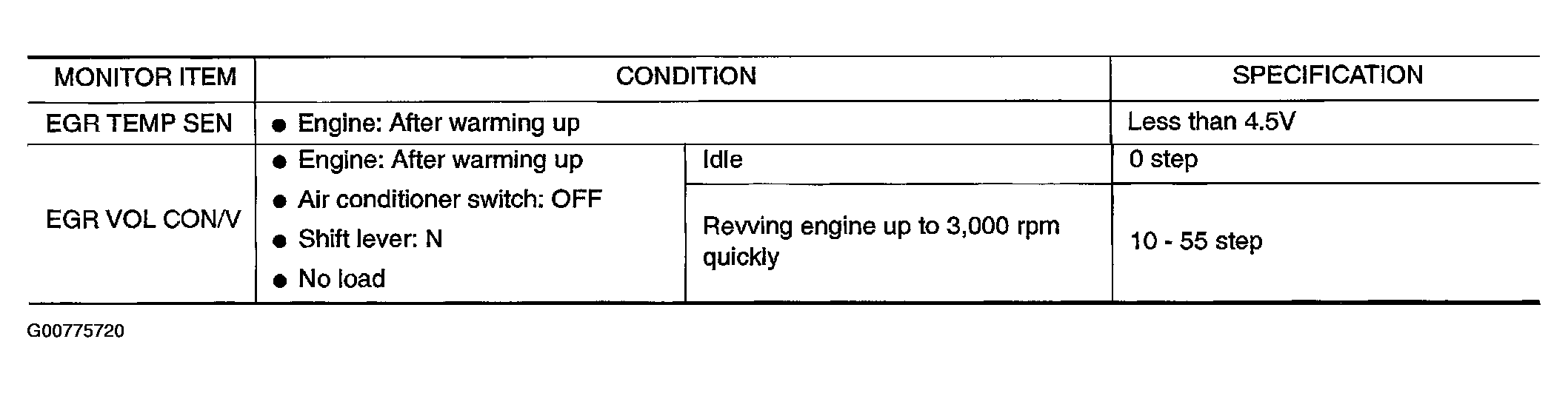

Fig 1: Specification Data Chart

G00775720

Courtesy of NISSAN MOTOR CO., U.S.A.
