Cooling Fan Control

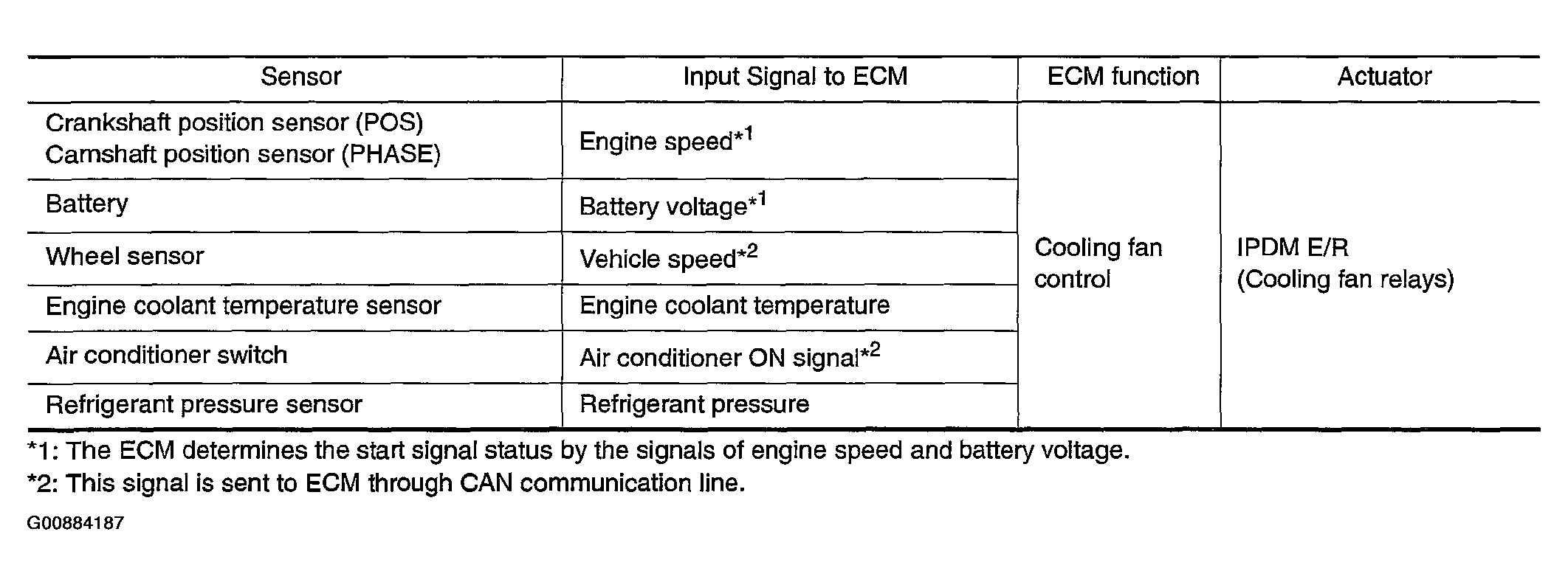

Fig 1: Cooling Fan Control Specification

Courtesy of NISSAN MOTOR CO., U.S.A.

The ECM controls the cooling fan corresponding to the vehicle speed, engine coolant temperature, refrigerant pressure, and air conditioner ON signal. The control system has 4-step control [HIGH/MIDDLE/LOW/OFF].

The ECM controls cooling fan relays through CAN communication line.
