ASCD Brake Switch

  1. Turn ignition switch OFF.
  2. Disconnect ASCD brake switch harness connector.
  3. Check harness continuity between ASCD brake switch terminals 1 and 2 under the following conditions.

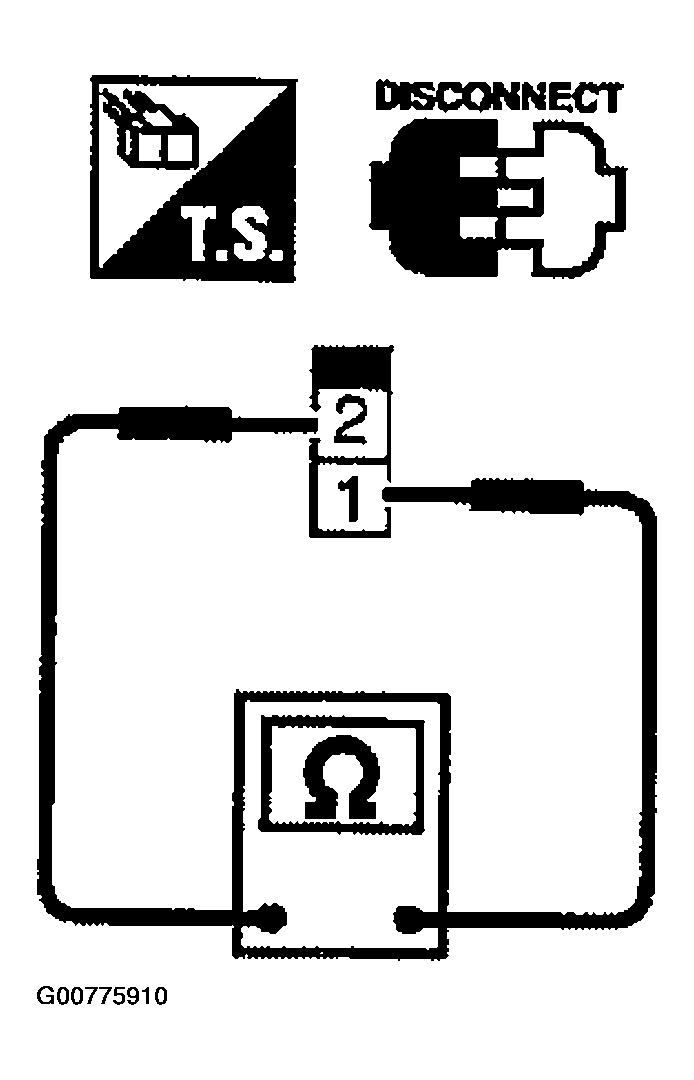

    Fig 1: Checking Harness Continuity Between ASCD Brake Switch Terminals
    G00775910Courtesy of NISSAN MOTOR CO., U.S.A.

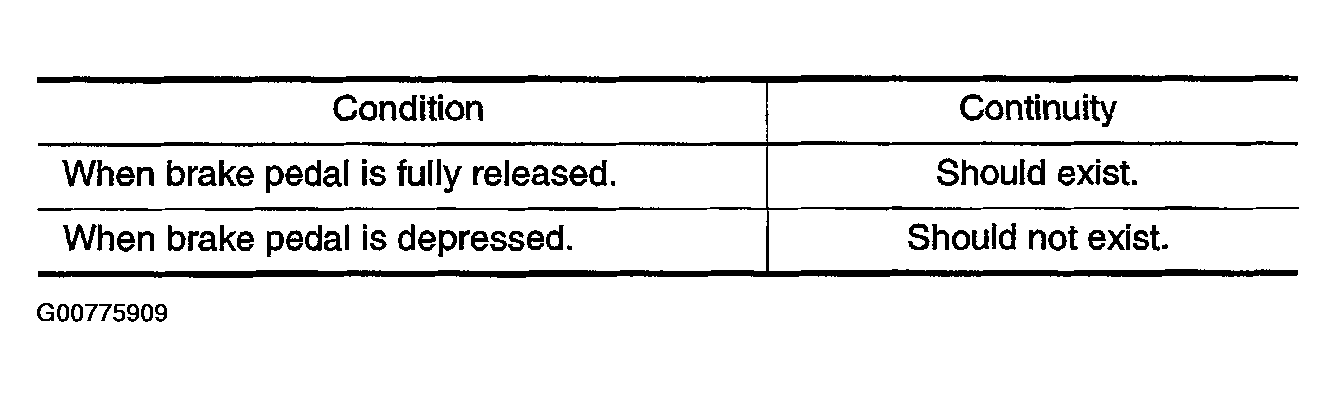

    Fig 2: Displaying Testing Conditions
    G00775909Courtesy of NISSAN MOTOR CO., U.S.A.

    If NG, adjust ASCD brake switch installation, refer to ADJUSTMENTS and perform step 3 again.
