With GST

  1. Turn ignition switch ON.
  2. Check voltage between ECM terminal 102 (PNP switch signal) and ground under the following conditions.

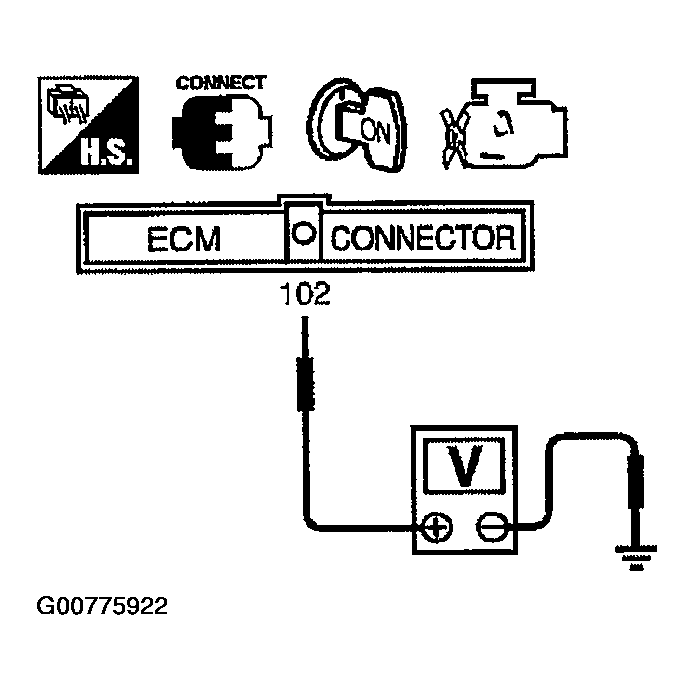

    Fig 1: Checking Voltage Between ECM Terminal 102 And Ground
    G00775922Courtesy of NISSAN MOTOR CO., U.S.A.

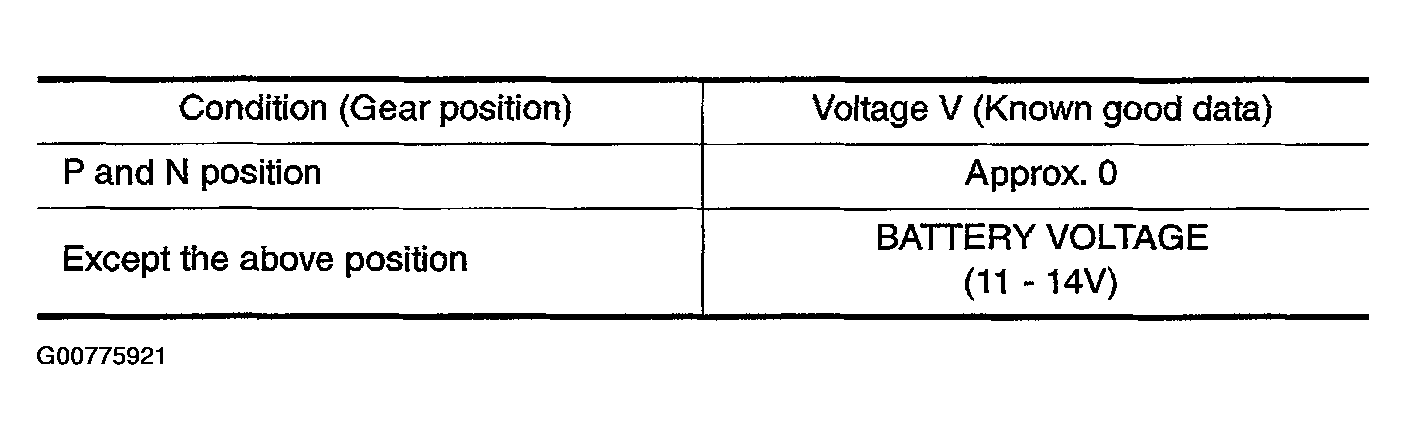

    Fig 2: Displaying Conditions For Testing
    G00775921Courtesy of NISSAN MOTOR CO., U.S.A.
  3. If NG, go to DIAGNOSTIC PROCEDURE  .
