Ignition Coil With Power Transistor

  1. Turn ignition switch OFF.
  2. Disconnect ignition coil harness connector.
  3. Check resistance between ignition coil terminals as follows.

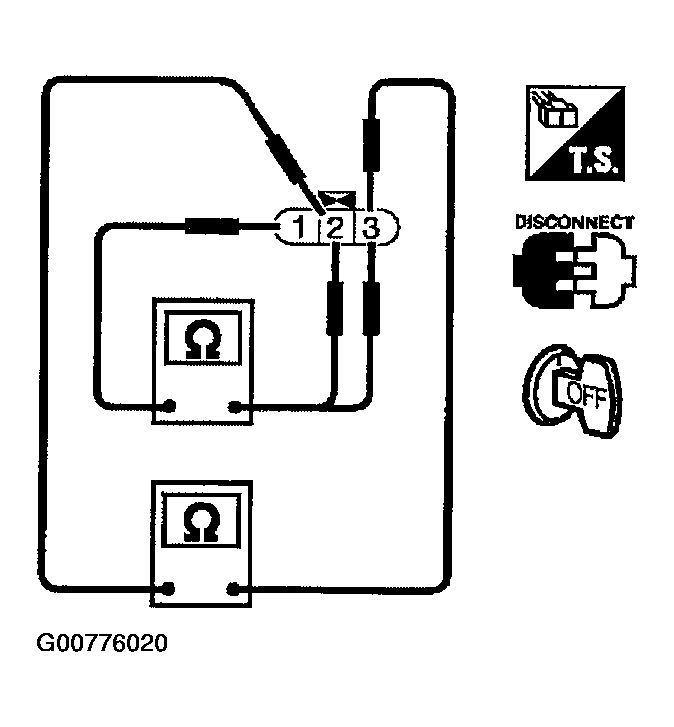

    Fig 1: Checking Resistance Between Ignition Coil Terminals
    G00776020Courtesy of NISSAN MOTOR CO., U.S.A.

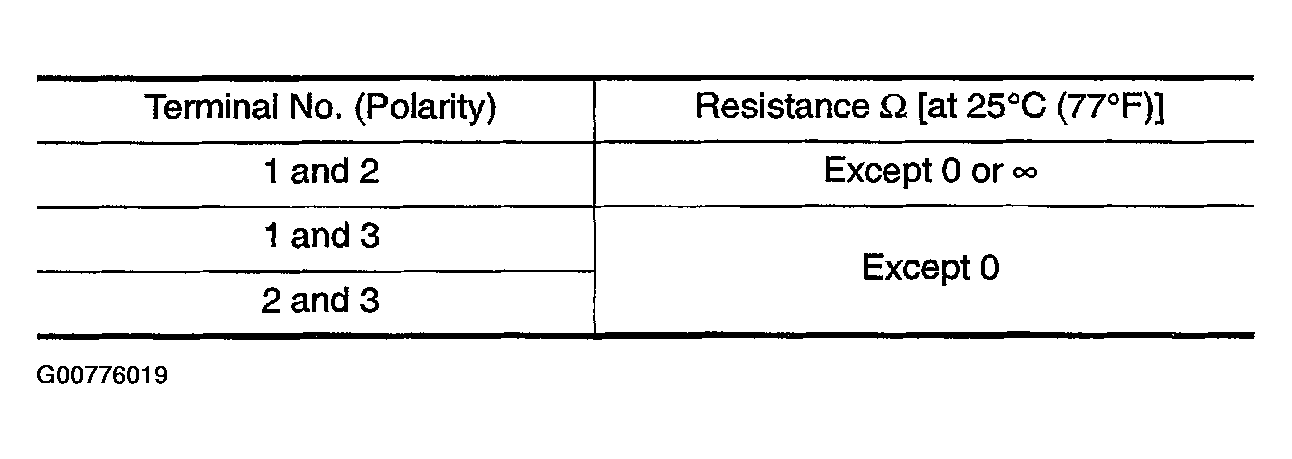

    Fig 2: Identifying Terminal Resistance
    G00776019Courtesy of NISSAN MOTOR CO., U.S.A.
