Engine Control Component Parts/Control Systems Application

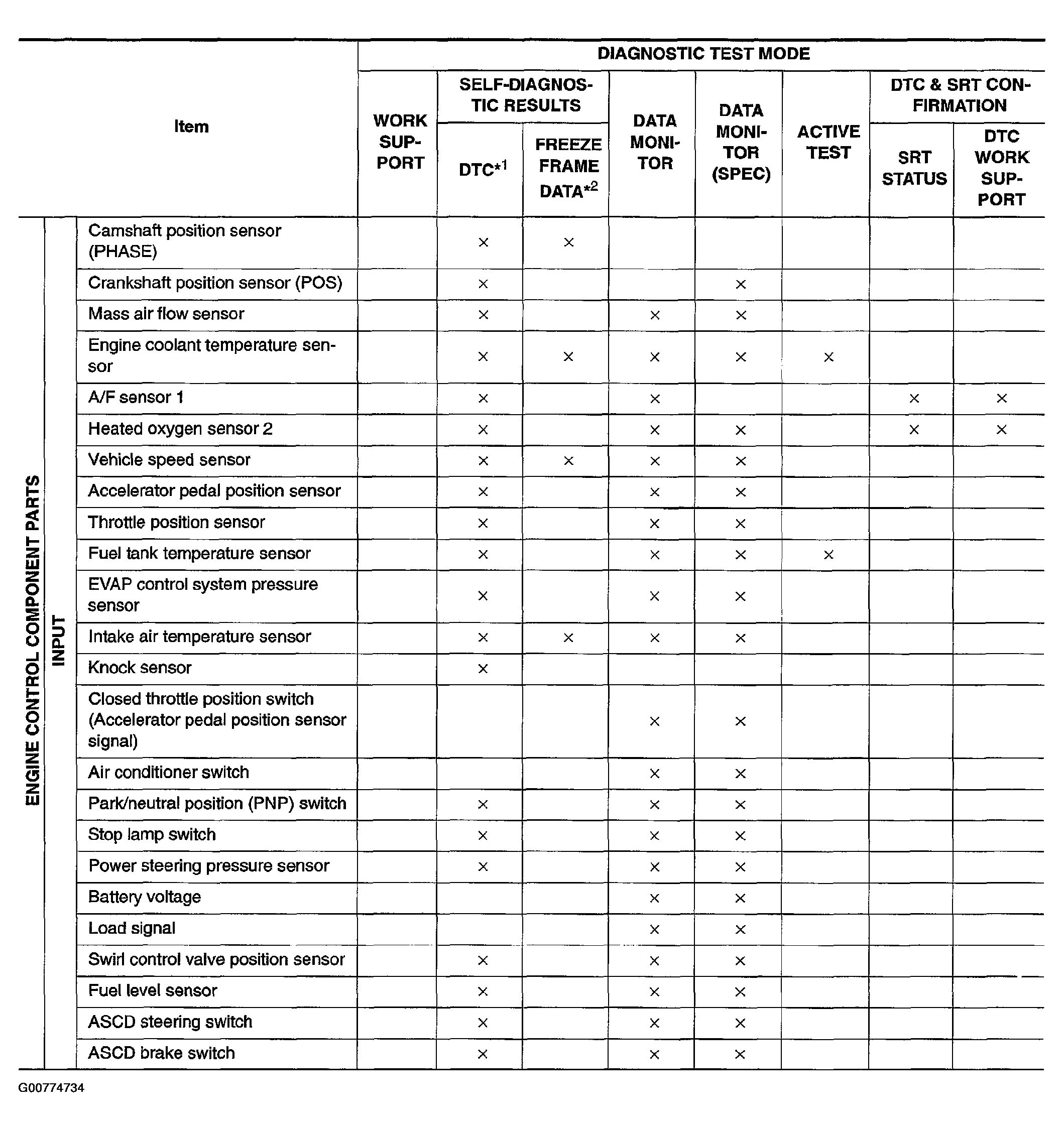

Fig 1: Engine Control Component Parts Specification Chart (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

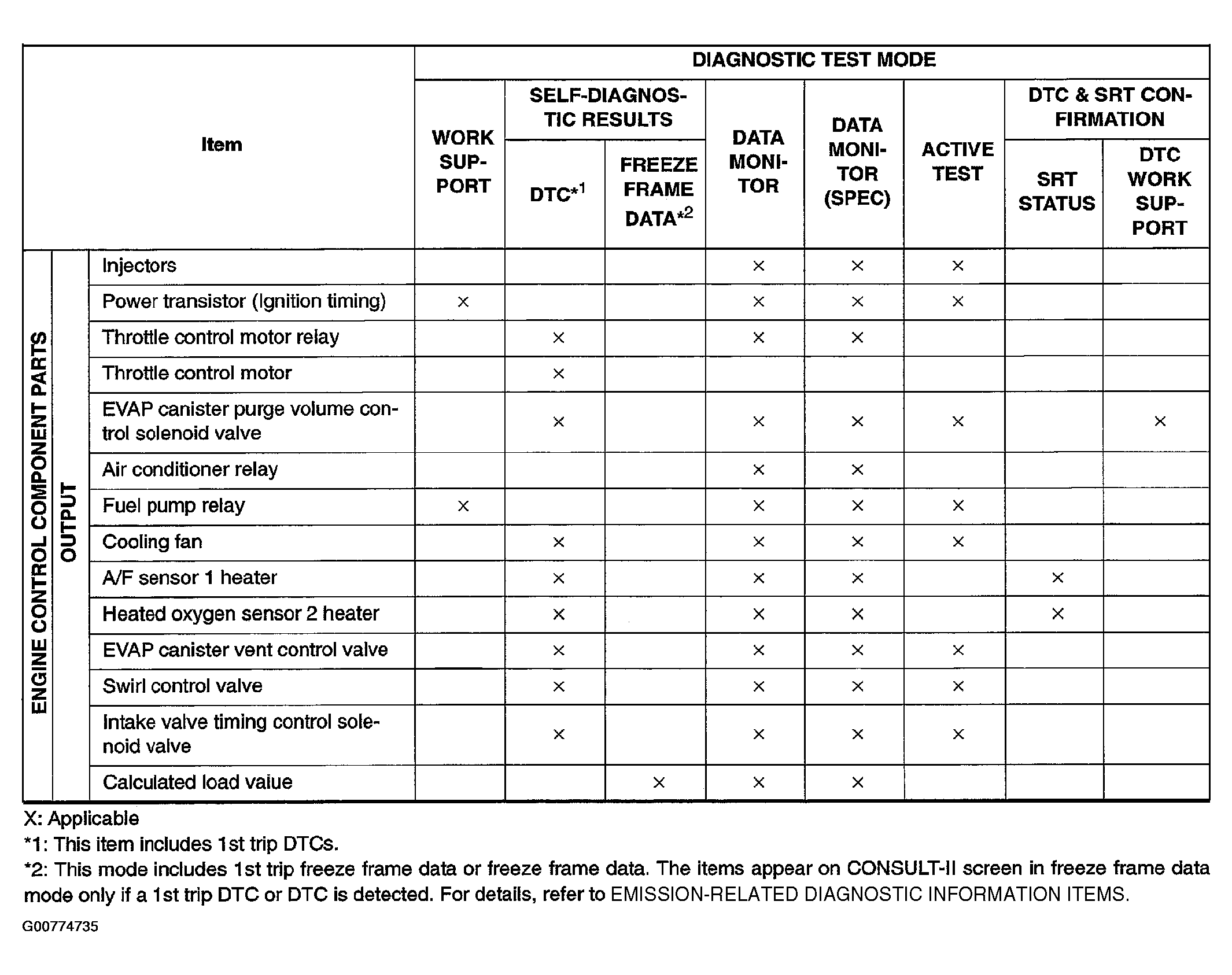

Fig 2: Engine Control Component Parts Specification Chart (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
