CONSULT-II Function: Function

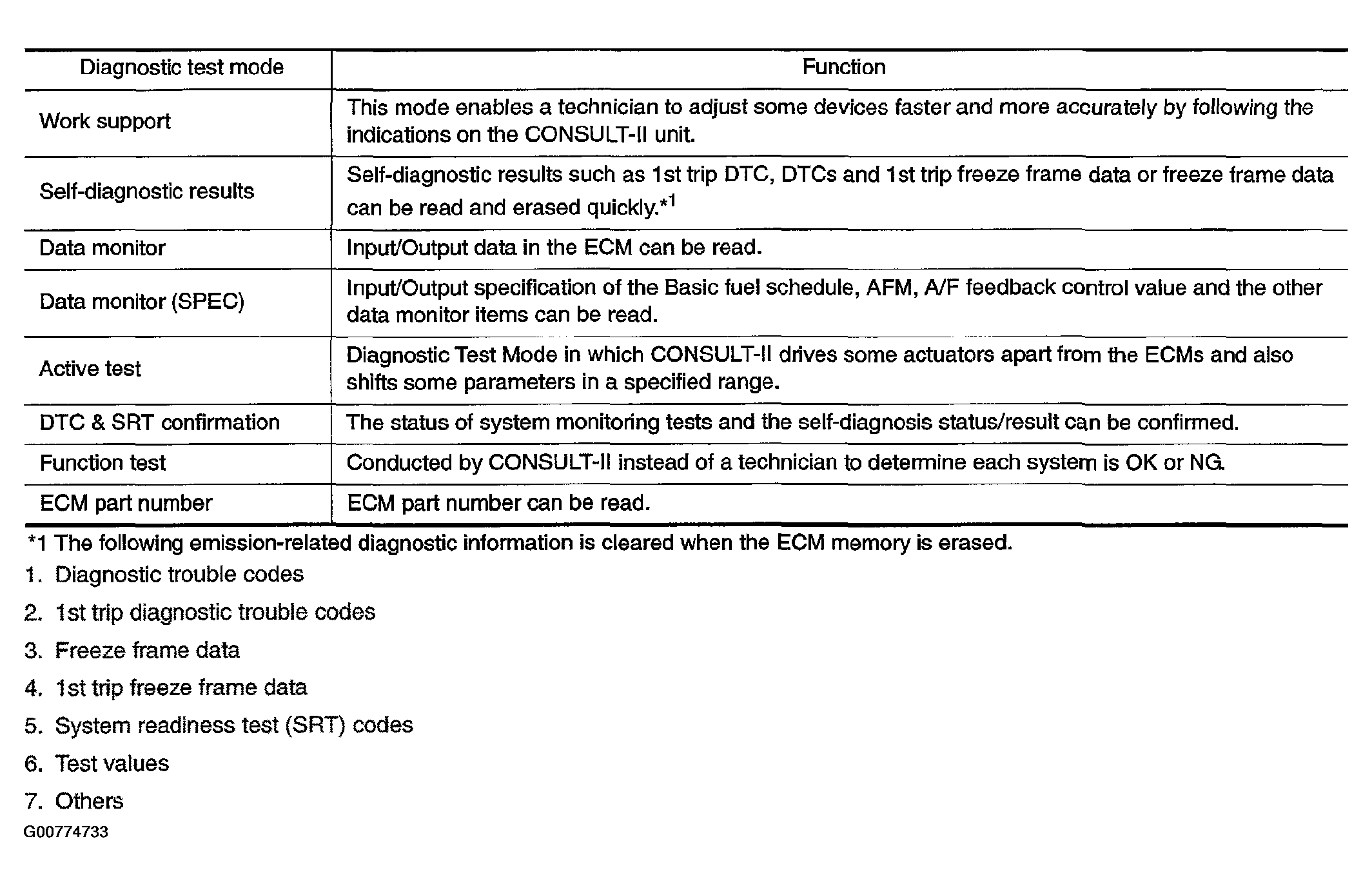

Fig 1: CONSULT-II Function Chart
G00774733Courtesy of NISSAN MOTOR CO., U.S.A.
