Final Drive: Components

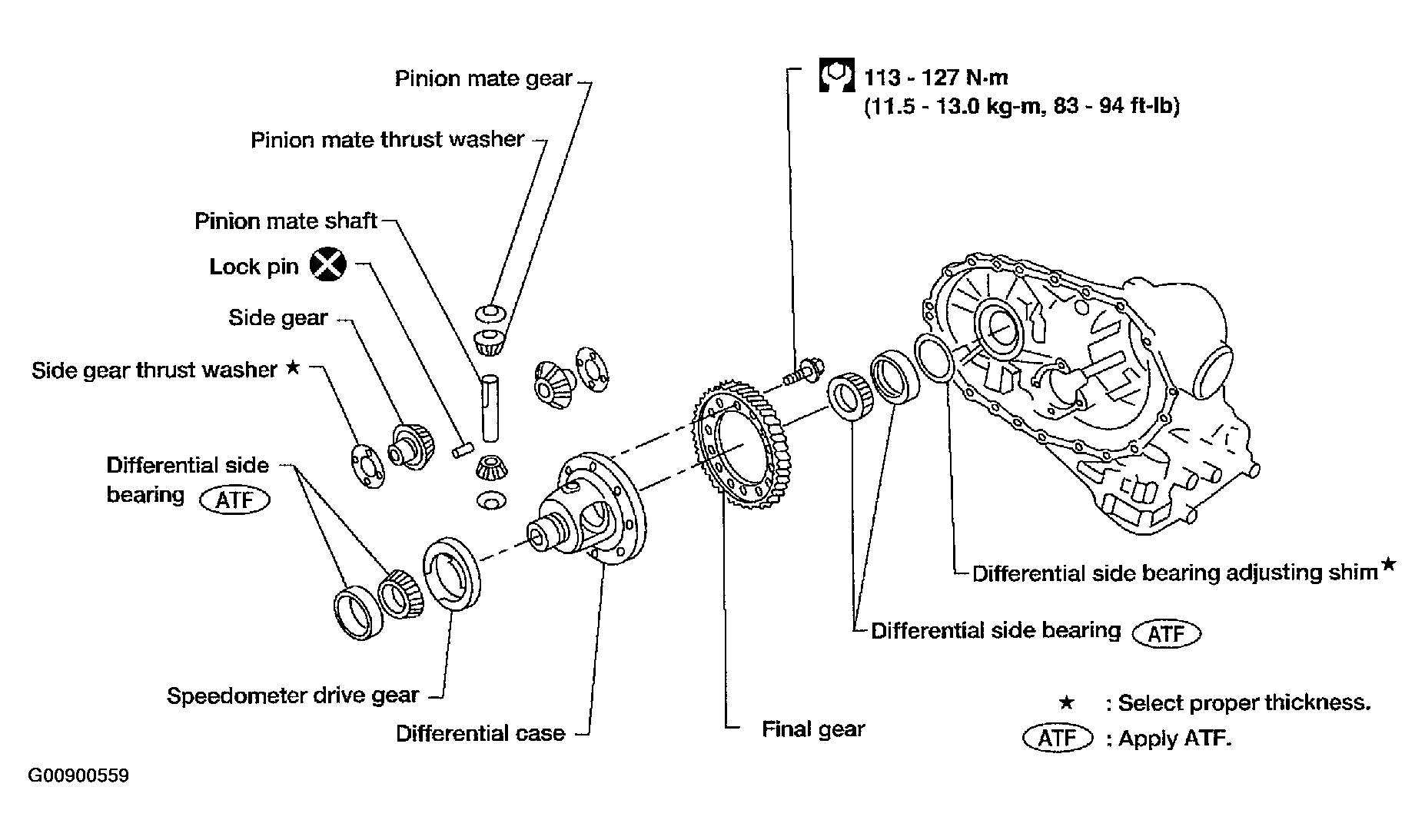

Fig 1: Identifying Final Drive Components
G00900559Courtesy of NISSAN MOTOR CO., U.S.A.
