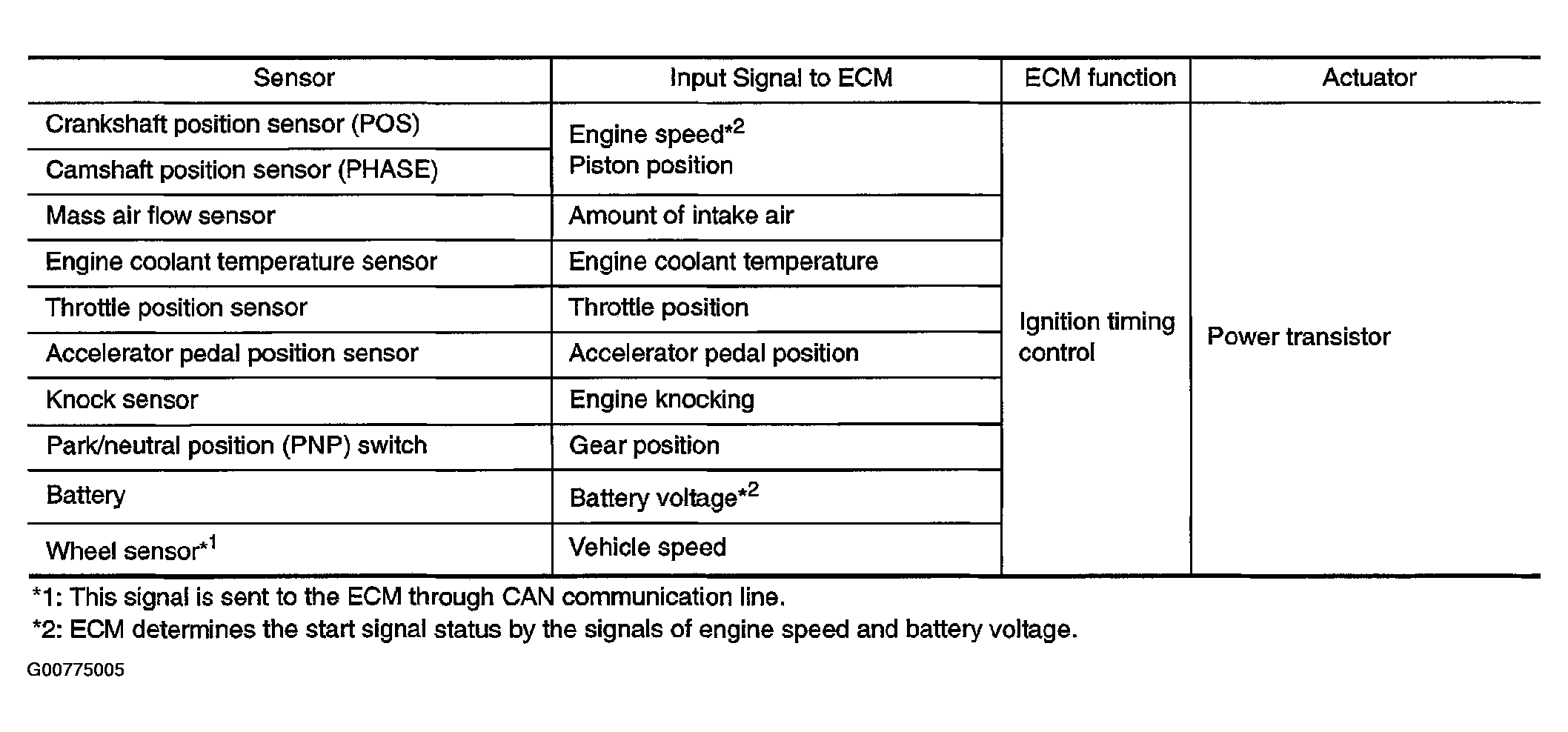

Input/Output Signal Chart
WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN MOTOR CO., U.S.A.
- This signal is sent to the ECM through CAN communication line.
- ECM determines the start signal status by the signals of engine speed and battery voltage.
