Ignition Coil With Power Transistor
WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
- Turn ignition switch OFF.
- Disconnect ignition coil harness connector.

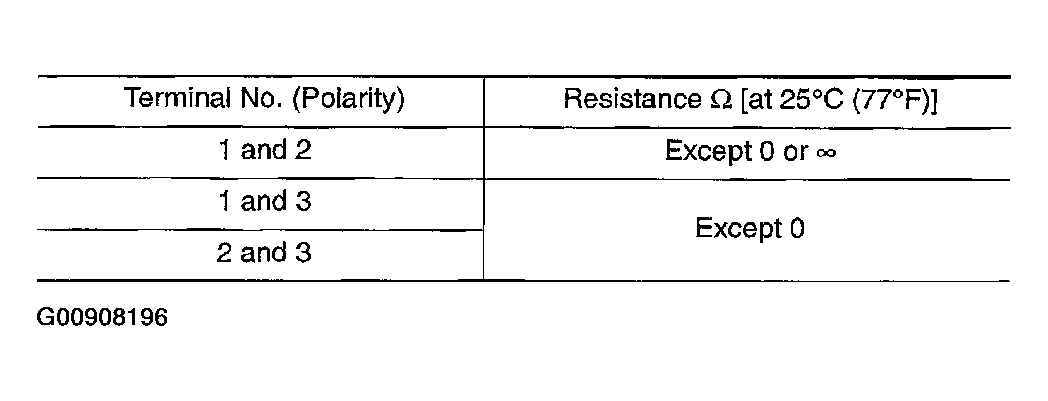

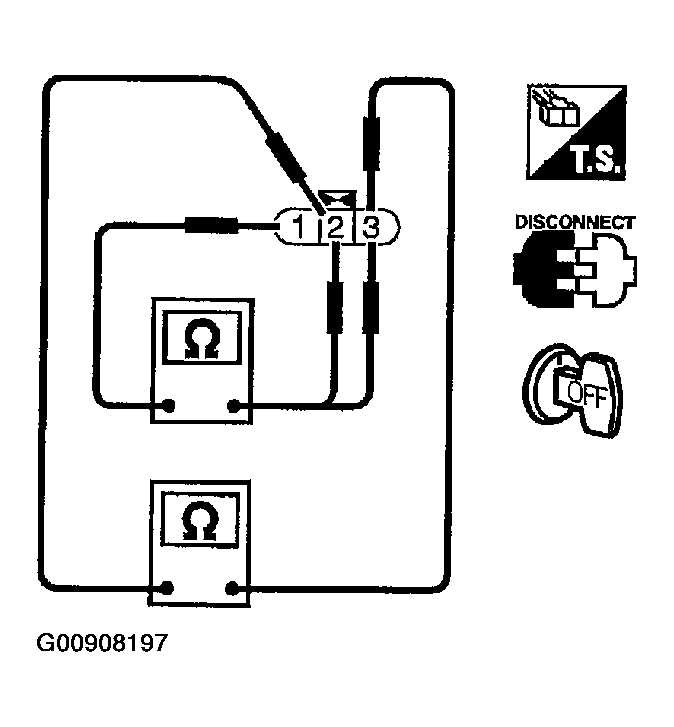

- Check resistance between ignition coil terminals as follows.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
