Operation Procedure

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Touch "BCM" on "SELECT TEST ITEM" screen.

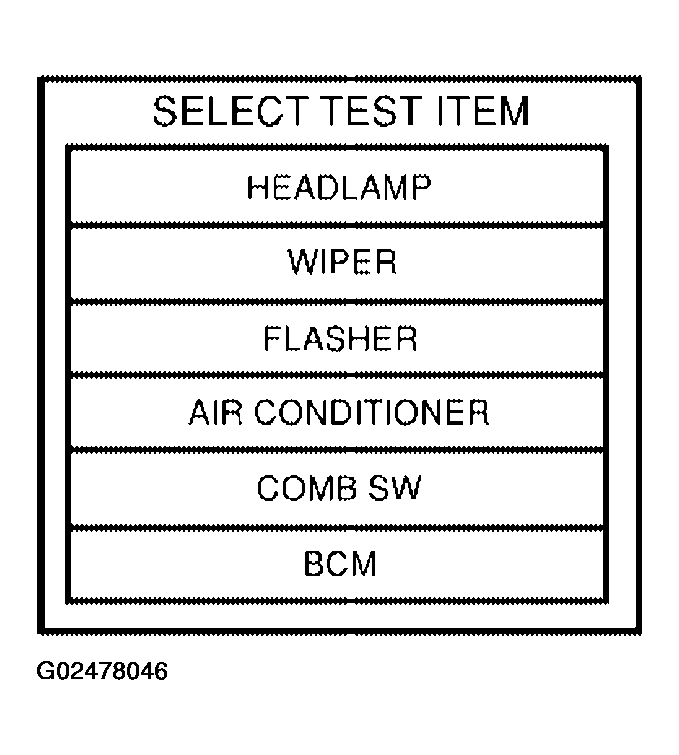

    Fig 1: CONSULT-II Display - SELECT TEST ITEM
    G02478046Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Touch "WORK SUPPORT" on "SELECT DIAG MODE" screen.
  3. Touch item on "SELECT WORK ITEM" screen.
  4. Touch "START".
  5. Touch "CHANGE SET".
  6. The setting will be changed and "RESETTING COMPLETED" will be displayed.
  7. Touch "END".

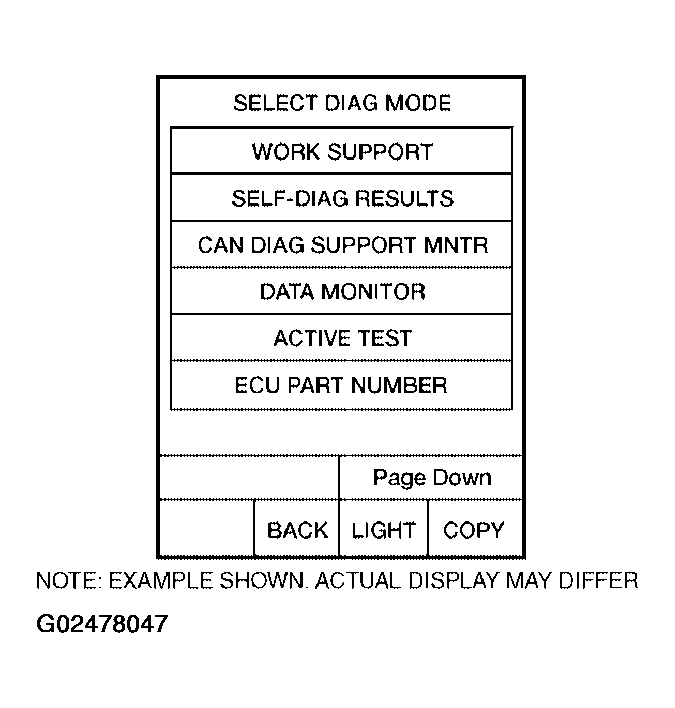

    Fig 2: CONSULT-II Display - SELECT DIAG MODE
    G02478047Courtesy of NISSAN MOTOR CO., U.S.A.
