Operating Check

WARNING: This page is about a different car, the 2005 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

With engine stopped, change the vacuum to the atmospheric pressure by depressing brake pedal several times. Then with brake pedal fully depressed, start engine and when the vacuum pressure reaches the standard, make sure the clearance between brake pedal and floor panel decreases.

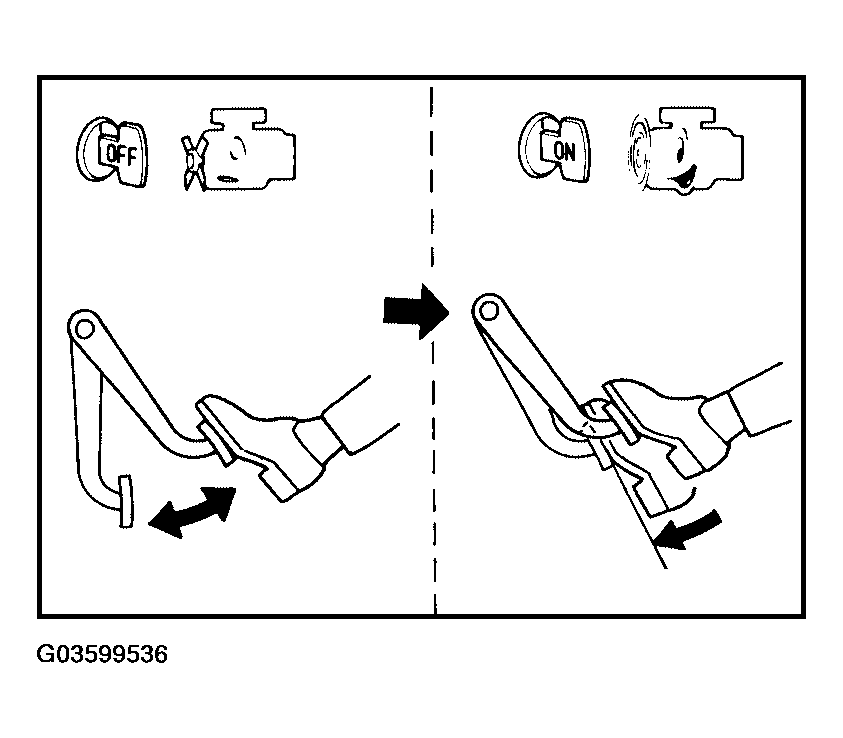

Fig 1: Depressing Brake Pedal
G03599536Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION: Depressing pedal interval is approximately 5 seconds.
