Power Transfer Flow

WARNING: This page is about a different car, the 2005 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.

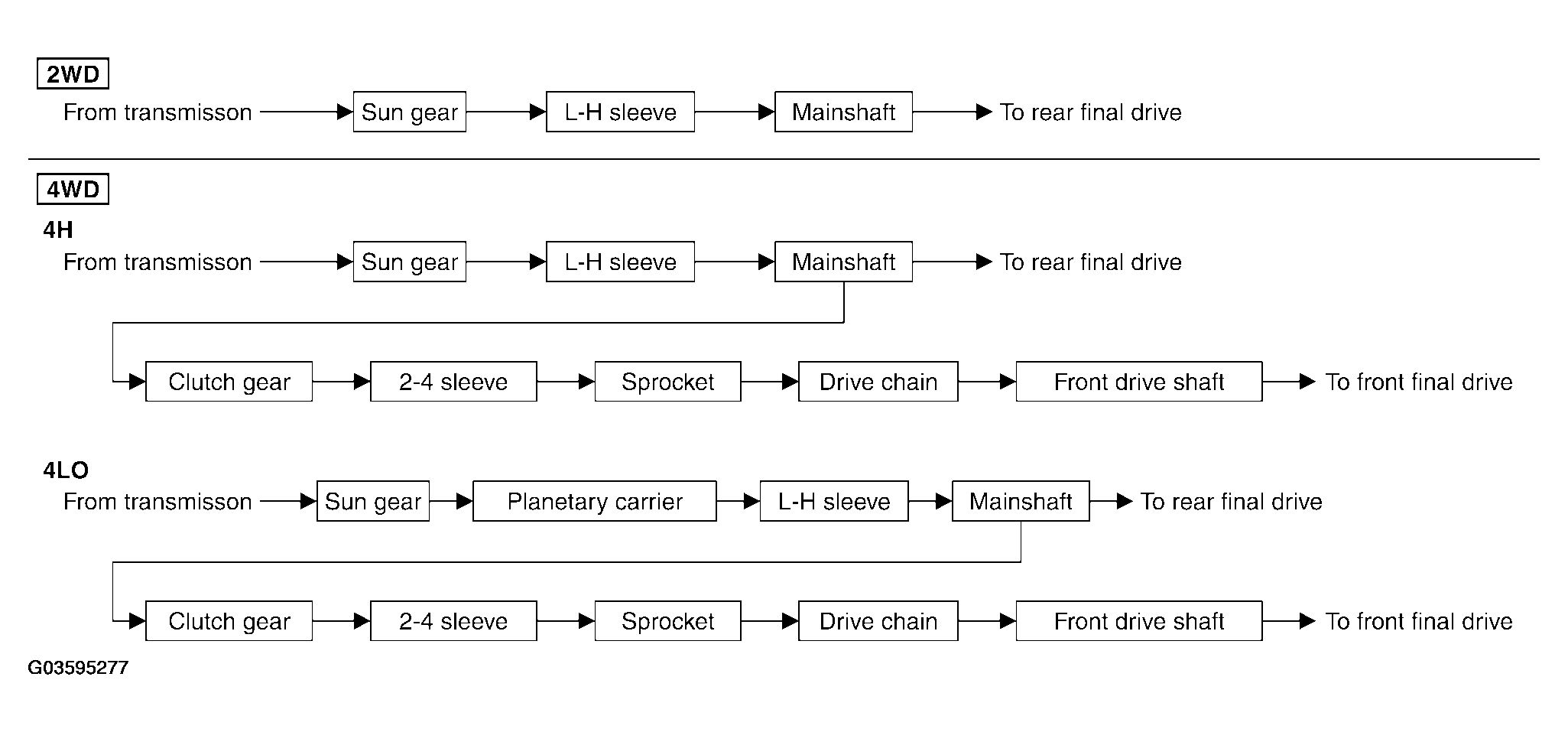

Fig 1: Identifying Power Transfer Flow
G03595277Courtesy of NISSAN MOTOR CO., U.S.A.
