Fuel Level Sensor Unit Tests

WARNING: This page is about a different car, the 2002 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

For fuel level sensor unit check, see Fig 1.

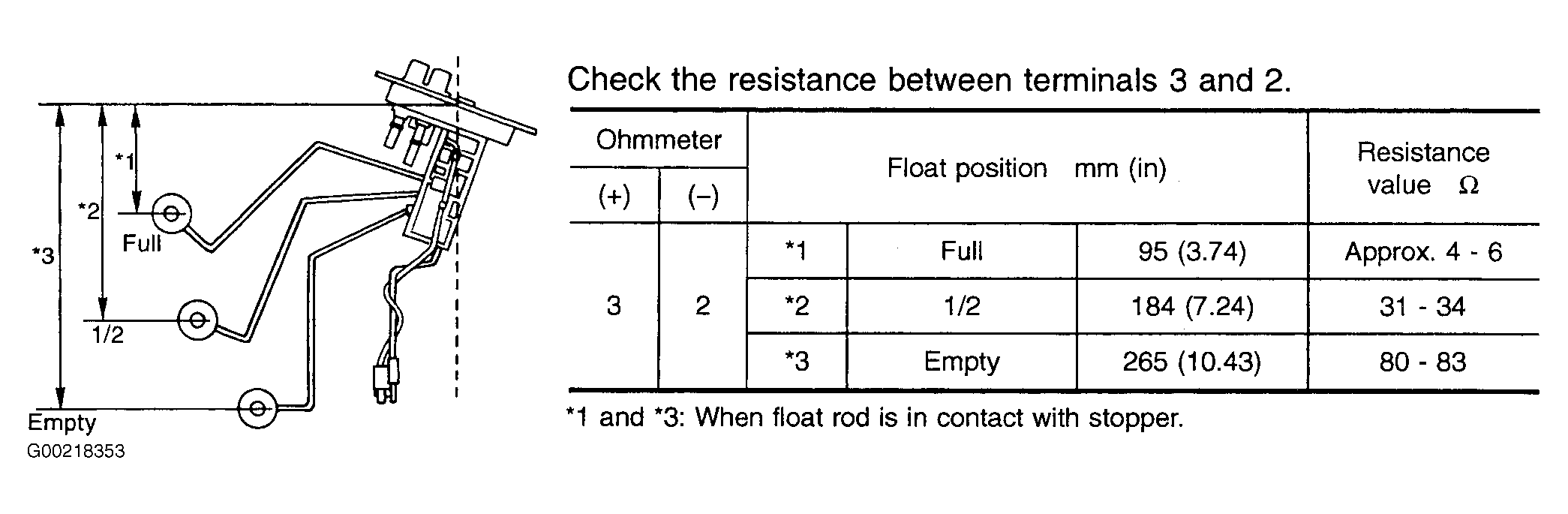

Fig 1: Identifying Fuel Level Sensor Unit Tests

Courtesy of NISSAN MOTOR CO., U.S.A.
