Component Locations

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

COMPONENT LOCATIONS

Component

⁽¹⁾ Location

Data Link Connector

Left Side Of Dash, Mounted On Bottom

ECM

Behind Right Side Of Dash

Transmission Control Module

Behind Right Front Kick Panel

⁽¹⁾	For component locations, see Fig 1 .

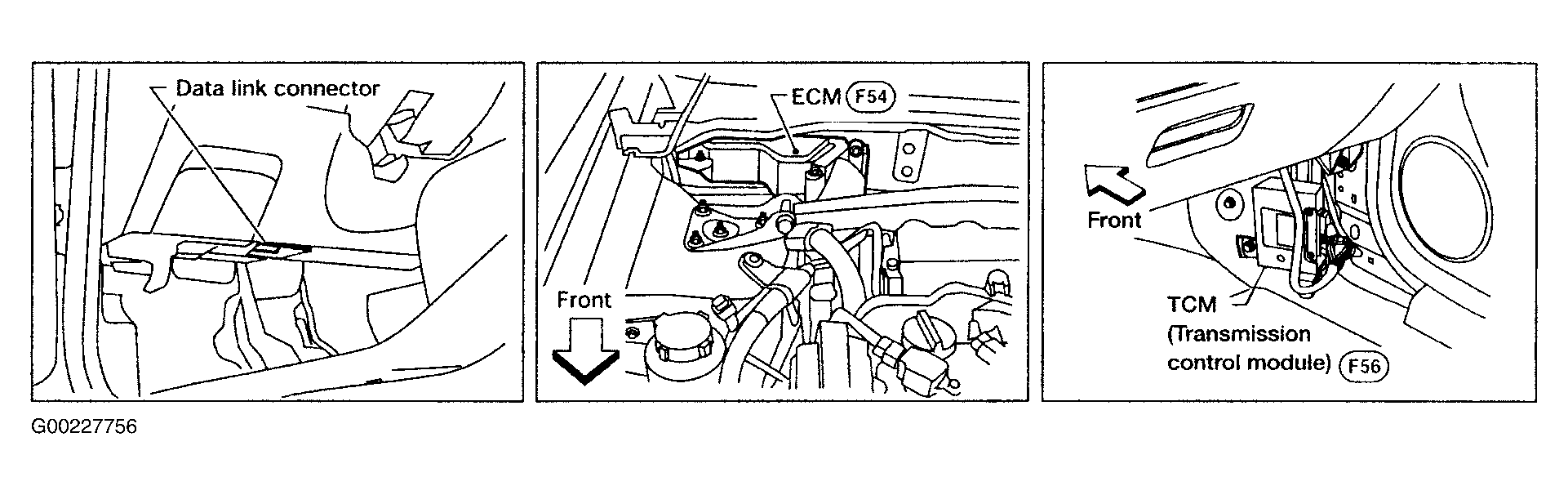

Fig 1: Locating & Identifying CAN Communication System Components

Courtesy of NISSAN MOTOR CO., U.S.A.
