Operation Procedure

WARNING: This page is about a different car, the 2006 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Touch "BCM" on "SELECT TEST ITEM" screen.

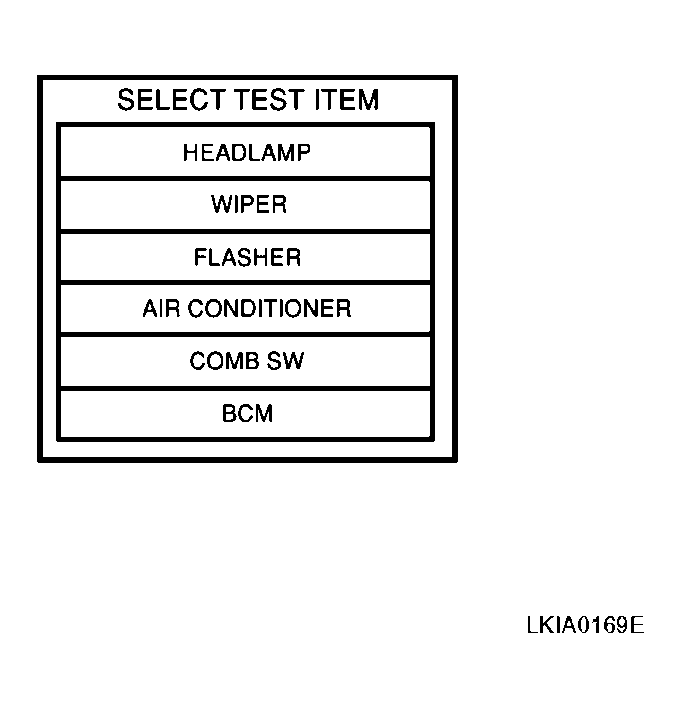

    Fig 1: CONSULT-II Display - SELECT TEST ITEM
    G04206456Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Touch "WORK SUPPORT" on "SELECT DIAG MODE" screen.
  3. Touch item on "SELECT WORK ITEM" screen.
  4. Touch "START".
  5. Touch "CHANGE SET".
  6. The setting will be changed and "RESETTING COMPLETED" will be displayed.
  7. Touch "END".
Fig 2: CONSULT-II Display - SELECT DIAG MODE
G04206457Courtesy of NISSAN MOTOR CO., U.S.A.
