Section 2157 (Starting System)
>>
Removal And Installation
>>
Starter Motor
>>
Exploded View
Exploded View
WARNING:
This page is about a different car, the 2011 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

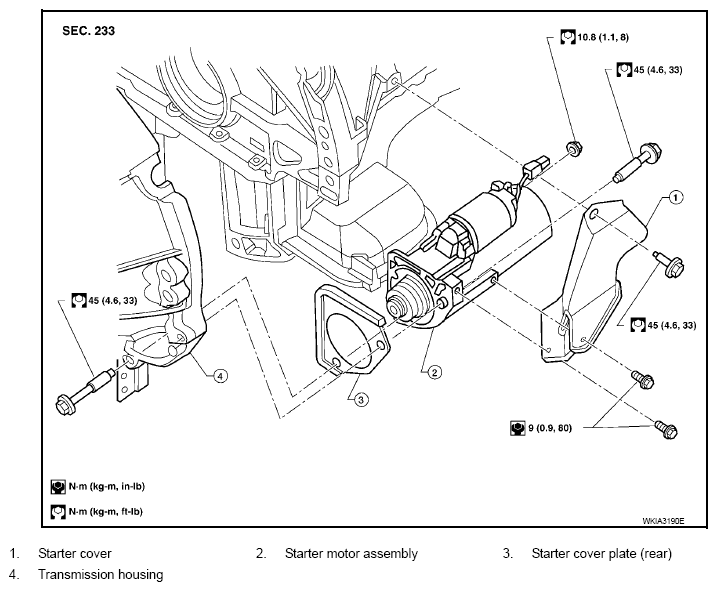

Fig 1: Exploded View Of Starter Motor With Torque Specifications
