Method A

WARNING: This page is about a different car, the 2006 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Attach timing light to loop wire as shown.

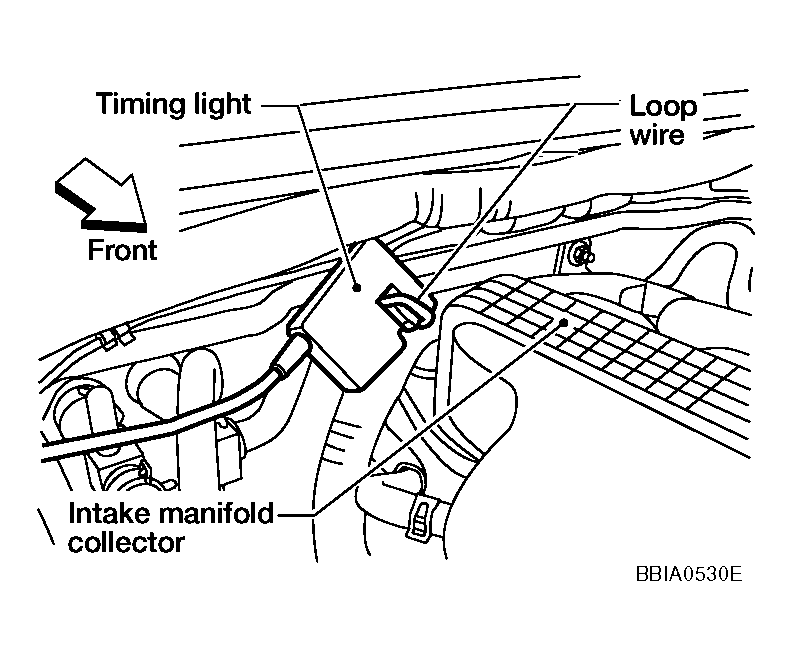

    Fig 1: Identifying Timing Light To Loop Wire
    G04202559Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Check ignition timing.

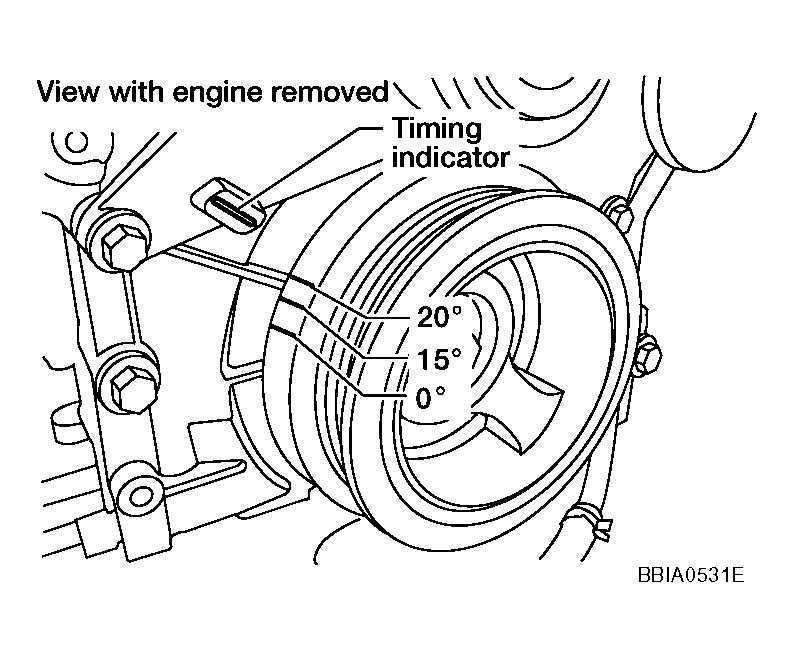

    Fig 2: Identifying Ignition Timing
    G04202560Courtesy of NISSAN MOTOR CO., U.S.A.
