Schematic/BOSE System

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

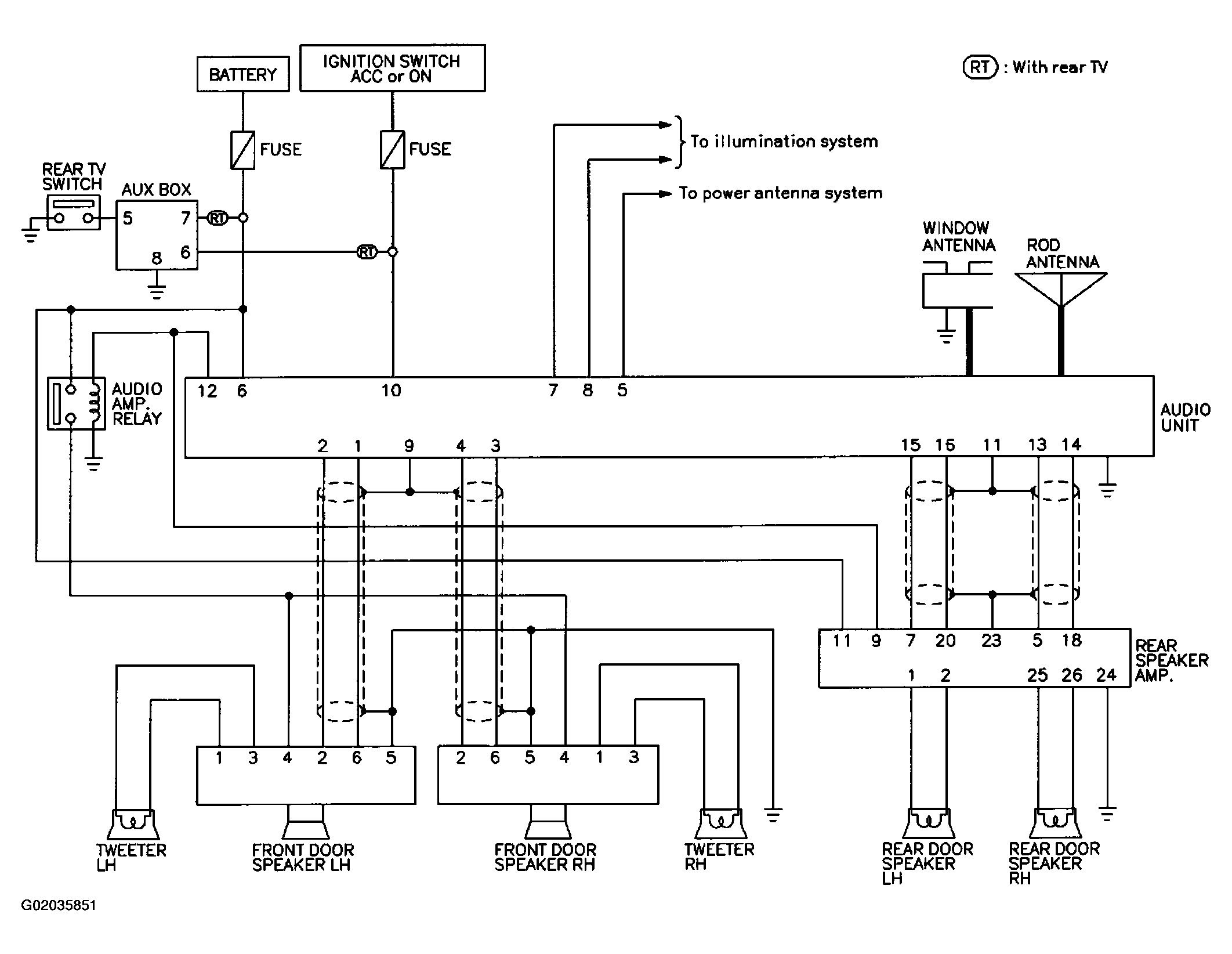

Fig 1: Audio System Schematic Diagram (Bose)
G02035851Courtesy of NISSAN MOTOR CO., U.S.A.
