Shift Mechanism: Construction

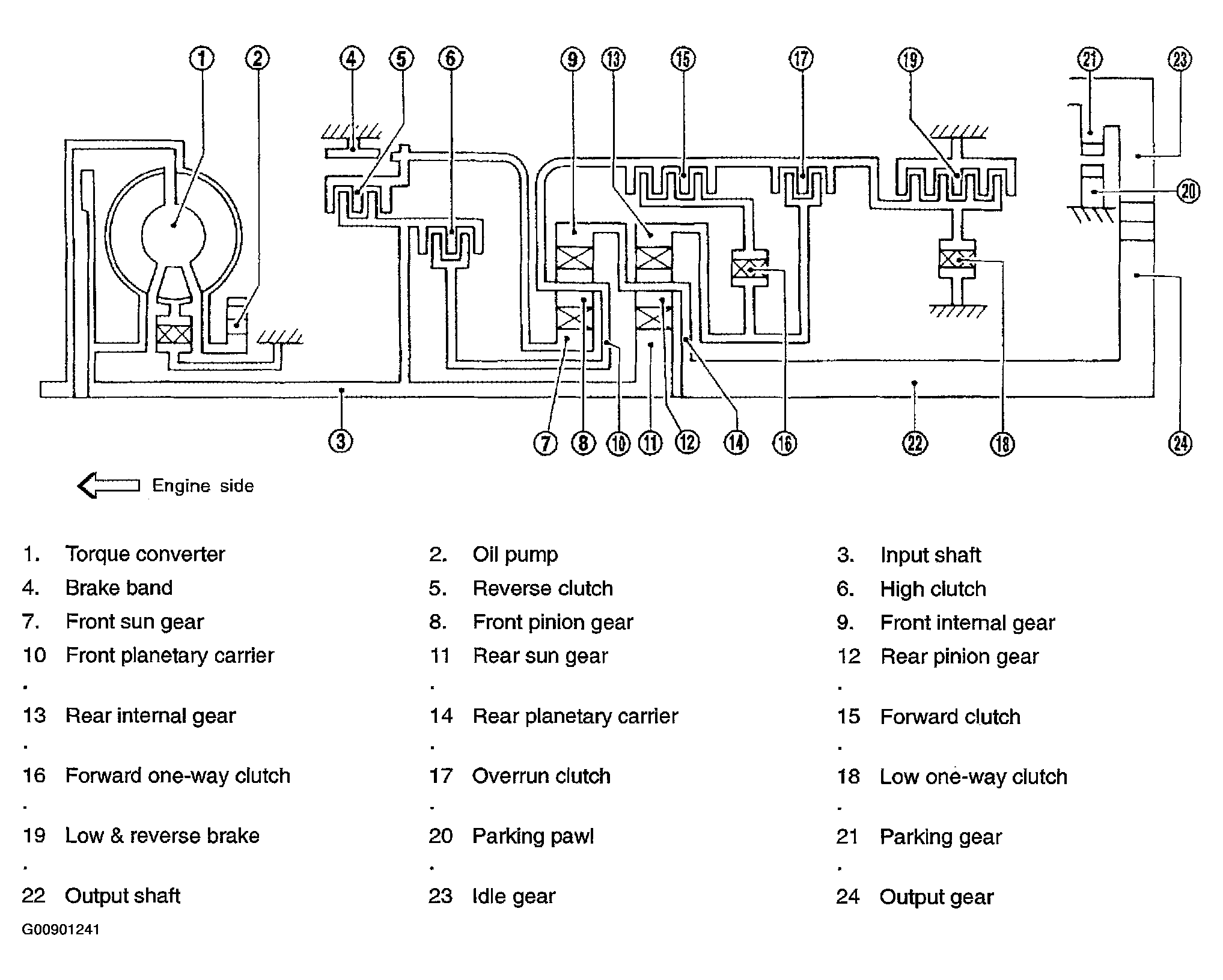

Fig 1: Identifying Shift Mechanism Construction
G00901241Courtesy of NISSAN MOTOR CO., U.S.A.
