Home >> Nissan-Datsun >> 2004 >> Sentra SE-R >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle - Re4F04B >> Repair For Component Parts >> Control Valve Upper Body >> Components

Control Valve Upper Body: Components

Apply ATF to all components before installation.

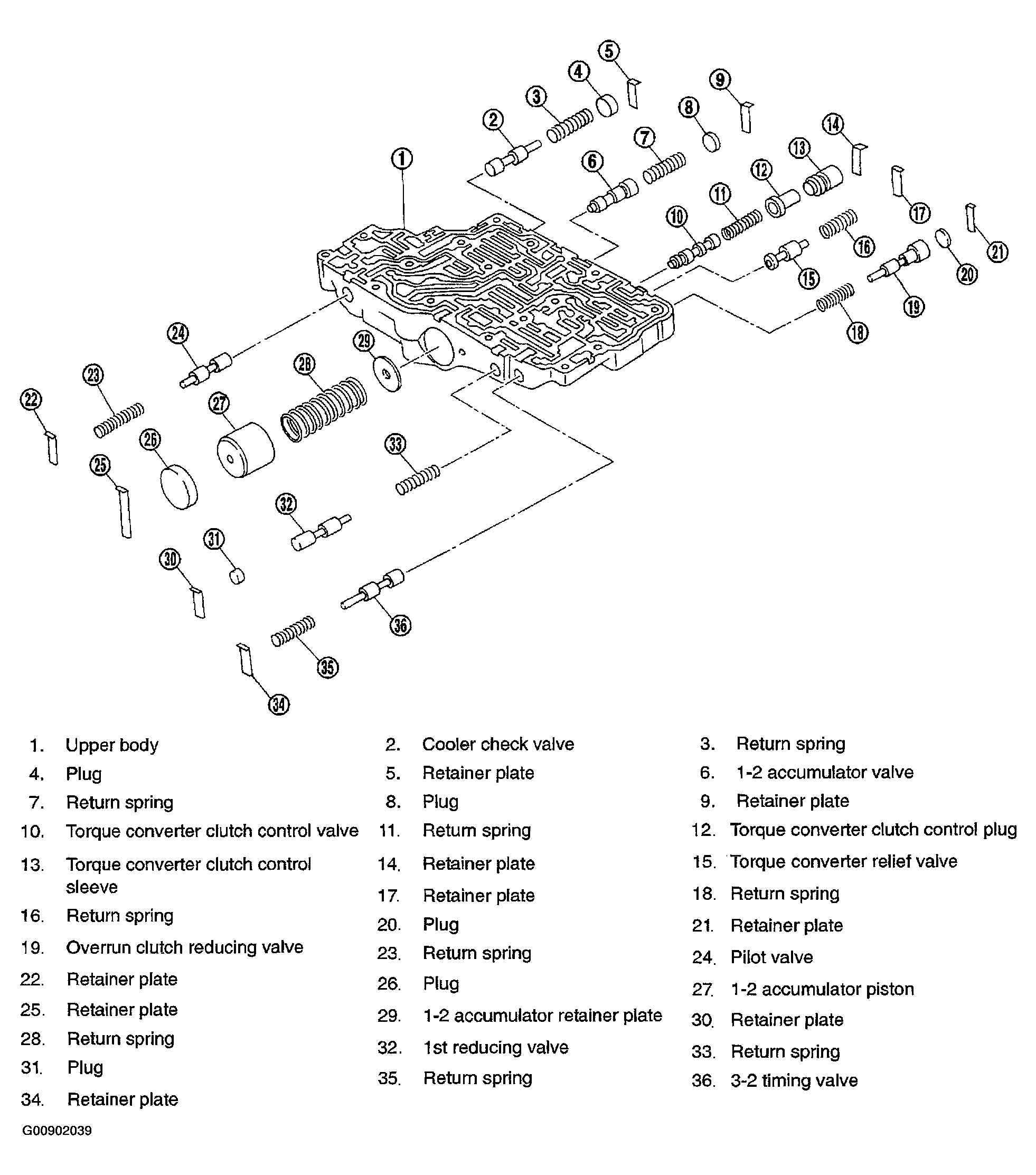

Fig 1: Identifying Control Valve Upper Body Components

G00902039

Courtesy of NISSAN MOTOR CO., U.S.A.
