Final Drive: Components

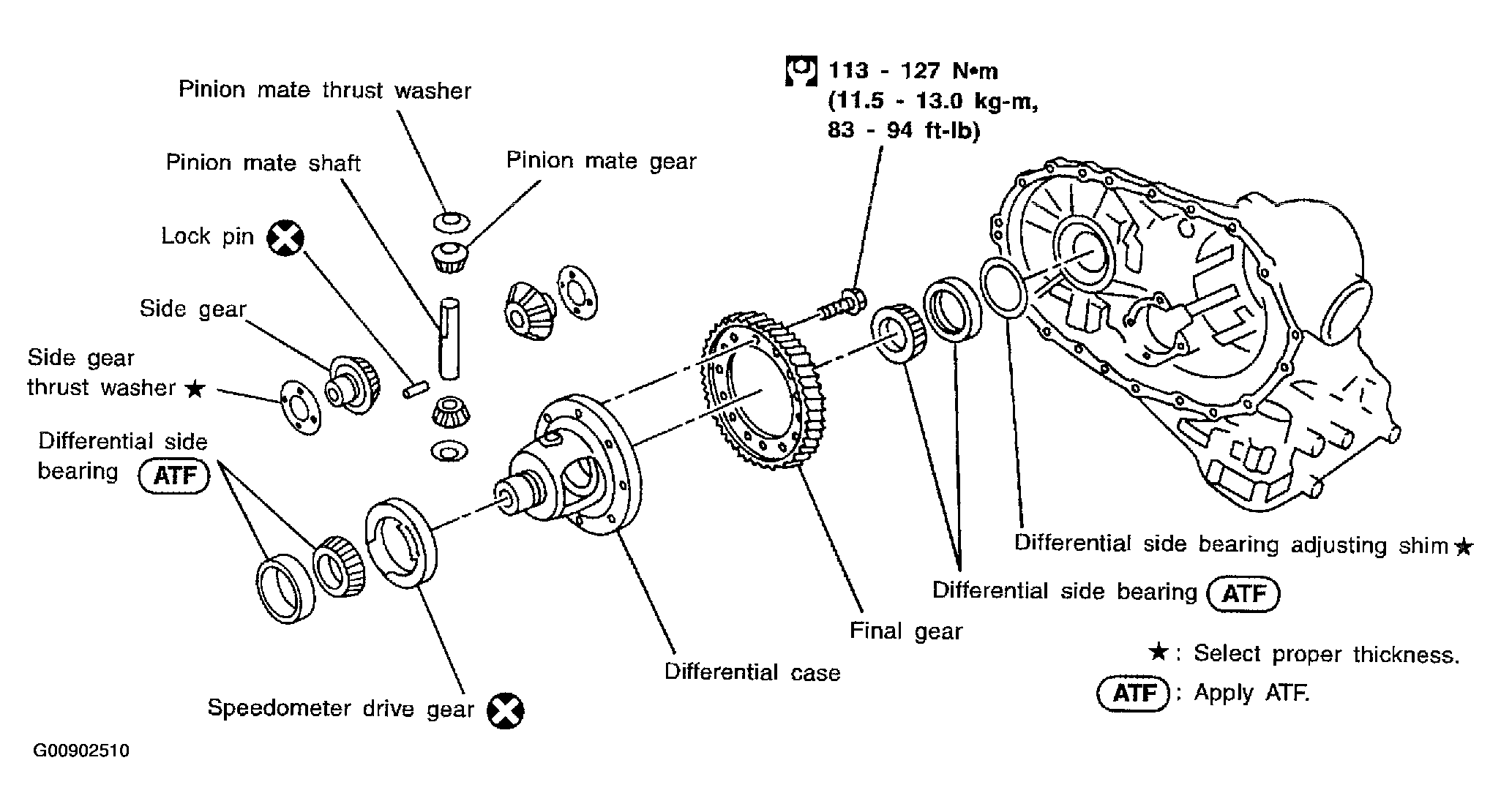

Fig 1: Identifying Final Drive Components And Tightening Torques
G00902510Courtesy of NISSAN MOTOR CO., U.S.A.
