Home >> Nissan-Datsun >> 2004 >> Sentra SE-R >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle - Re4F04B >> Repair For Component Parts >> Forward And Overrun Clutches >> Components

Forward And Overrun Clutches: Components

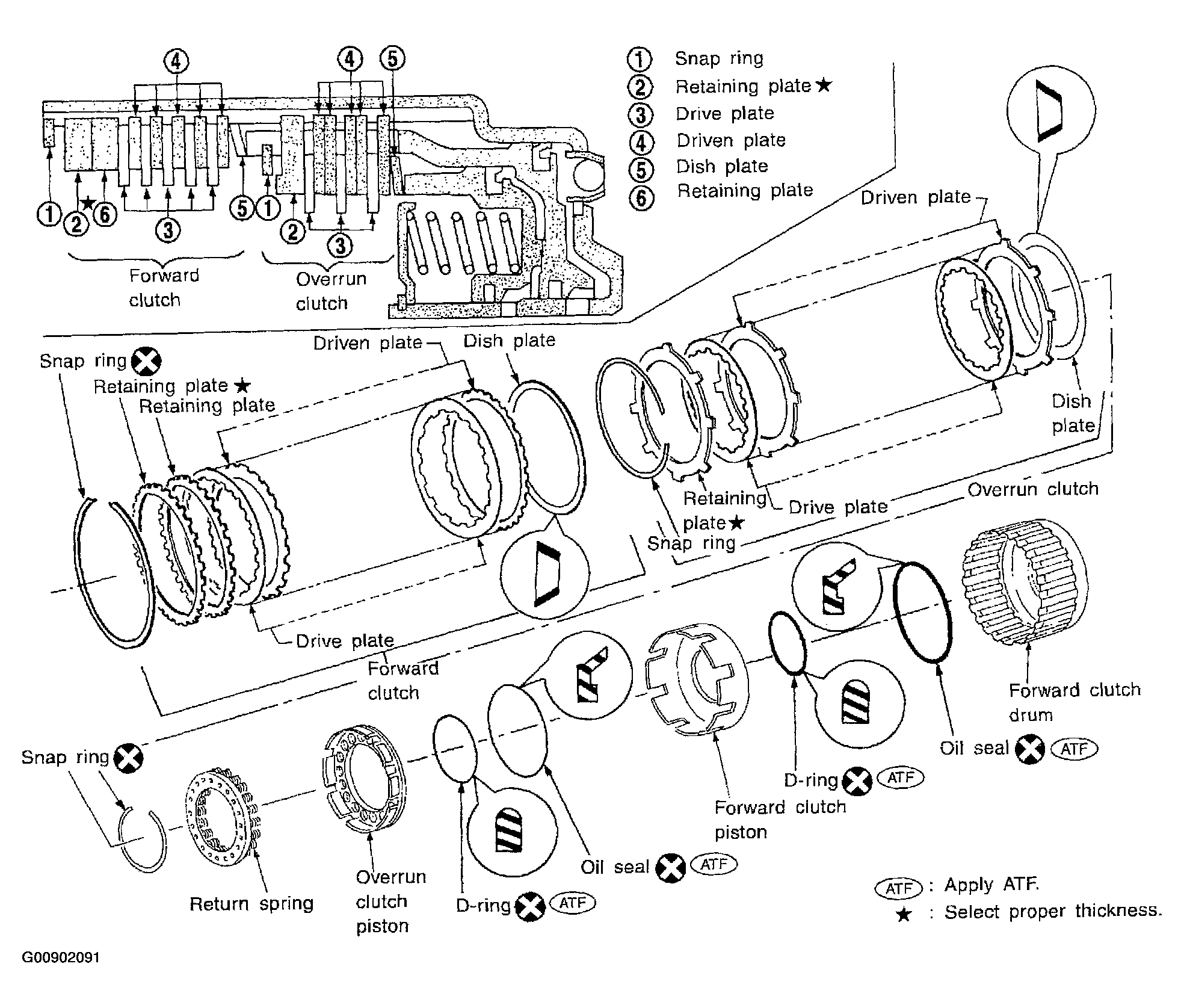

Fig 1: Identifying Forward Clutch And Overrun Clutch Components

G00902091

Courtesy of NISSAN MOTOR CO., U.S.A.
