Park/Neutral Position Switch

  1. Remove shift cable from manual shaft.
  2. Set manual shaft in Neutral.
  3. Loosen PNP switch bolts.
  4. Insert .16 in. (4 mm) pin into adjustment holes in both PNP switch and manual shaft assembly as near vertical as possible. See Fig 1 .

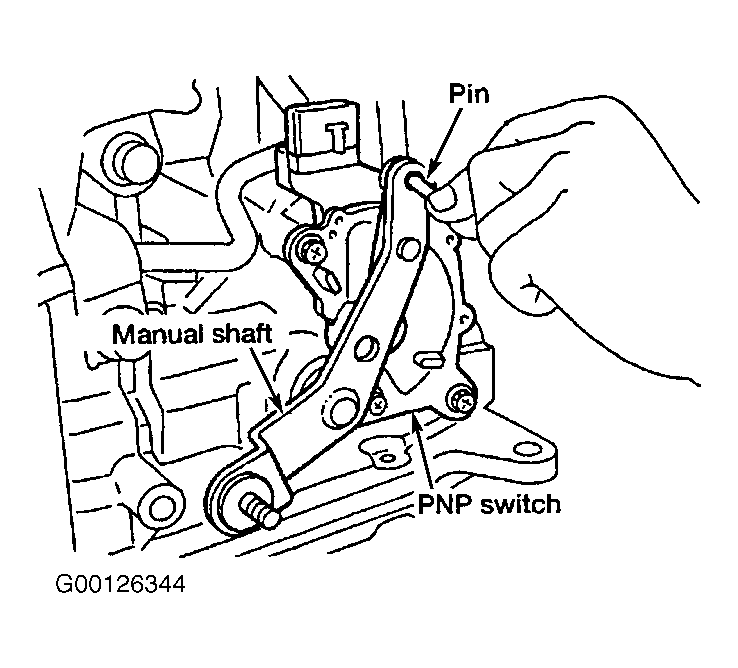

    Fig 1: Adjusting Park/Neutral Position Switch
    G00126344Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Reinstall any part removed.
  6. Check continuity of PNP switch. See appropriate DIAGNOSIS article.
