Engine Control System - Qr25DE
>>
Engine Control System
>>
System Diagram
System Diagram

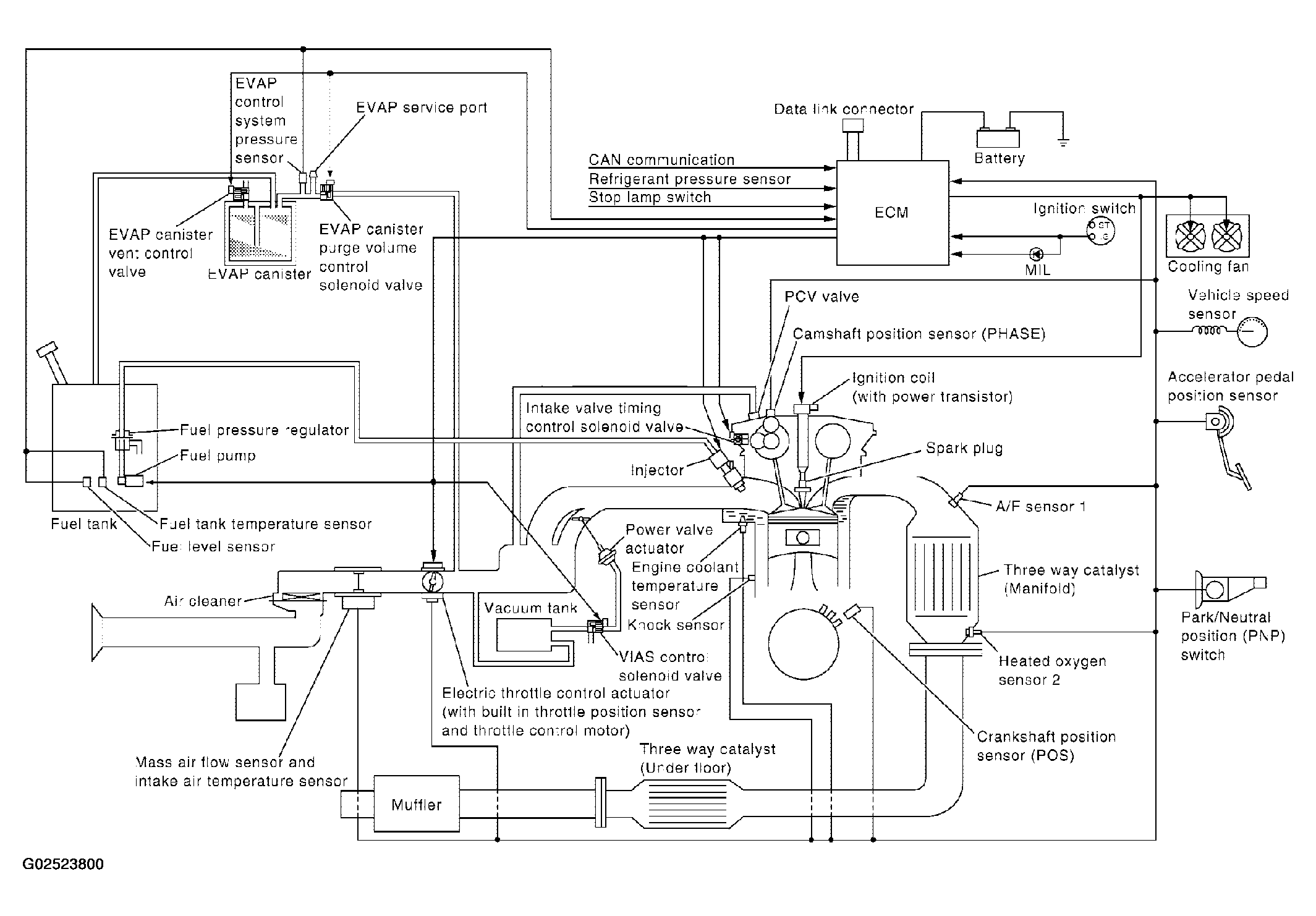

Fig 1: Engine Control System - System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
