Operation Procedure

  1. Touch "BCM" on "SELECT TEST ITEM" screen.

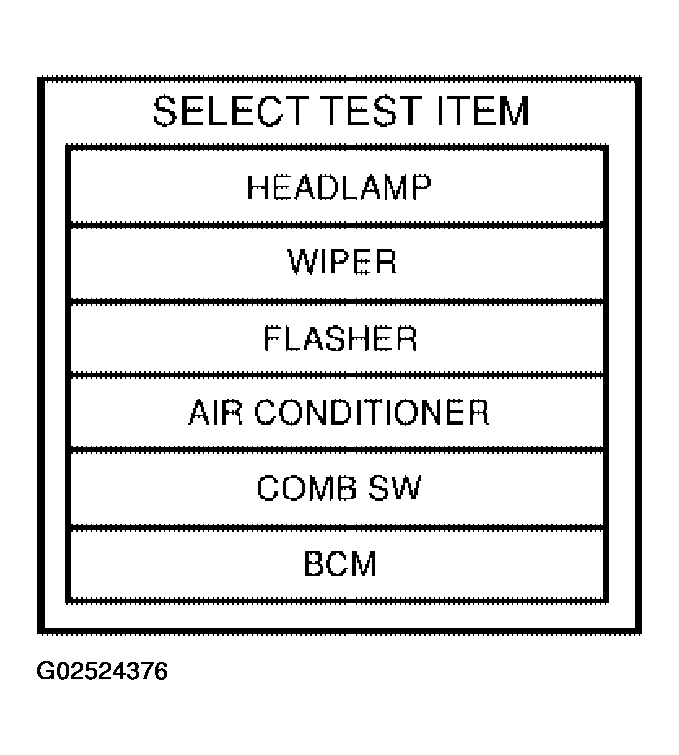

    Fig 1: Identifying Select Test Item Display
    G02524376Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Touch "WORK SUPPORT" on "SELECT DIAG MODE" screen.
  3. Touch item on "SELECT WORK ITEM" screen.
  4. Touch "START".
  5. Touch "CHANGE SET".
  6. The setting will be changed and "RESETTING COMPLETED" will be displayed.
  7. Touch "END".

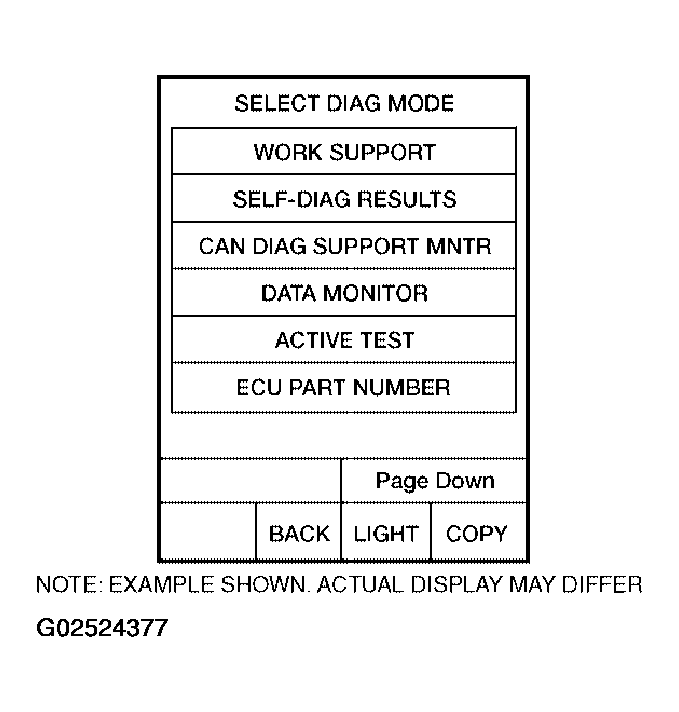

    Fig 2: Identifying Select Diag Mode Display
    G02524377Courtesy of NISSAN MOTOR CO., U.S.A.
