Fuel Level Sensor Unit Check

For removal, Refer to "REMOVAL AND INSTALLATION FOR ALL MODELS EXCEPT PZEV " or "REMOVAL AND INSTALLATION FOR PZEV MODELS ONLY ".
Check the resistance between terminals 2 and 5.

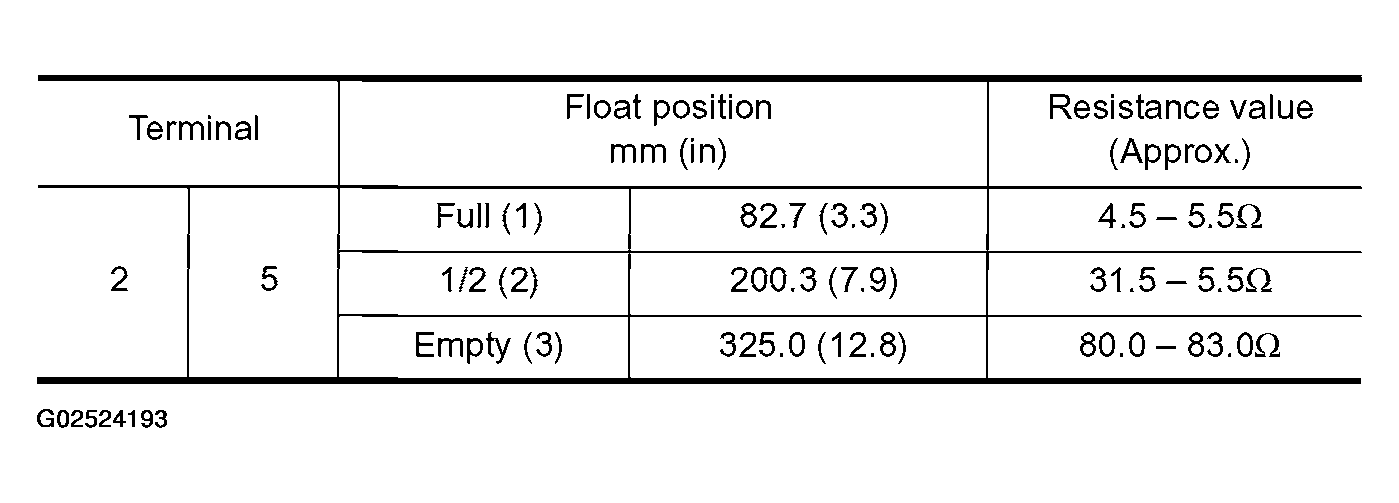

Fig 1: Resistance Check Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

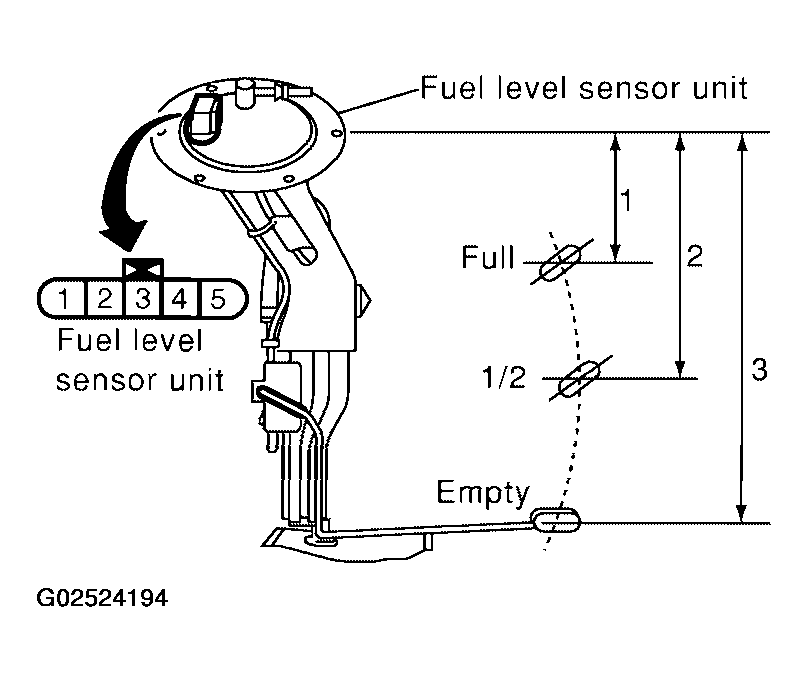

Fig 2: Checking Resistance Between Terminals 2 And 5
Courtesy of NISSAN MOTOR CO., U.S.A.
