Engine Control System - VQ35DE
>>
Trouble Diagnosis
>>
Symptom Matrix Chart
>>
System-Basic Engine Control System
System-Basic Engine Control System

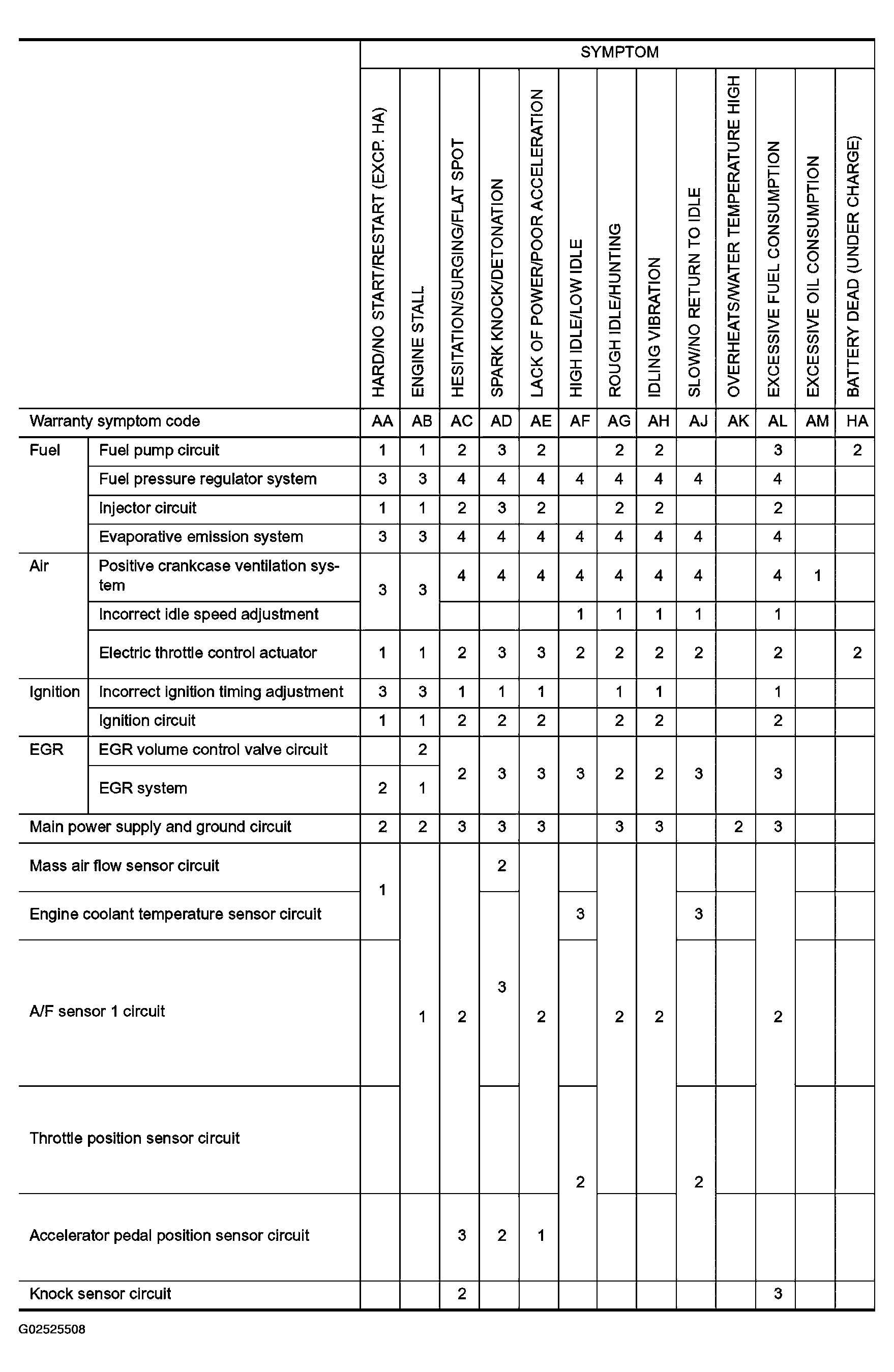

Fig 1: Engine Control System Symptom Matrix Chart (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

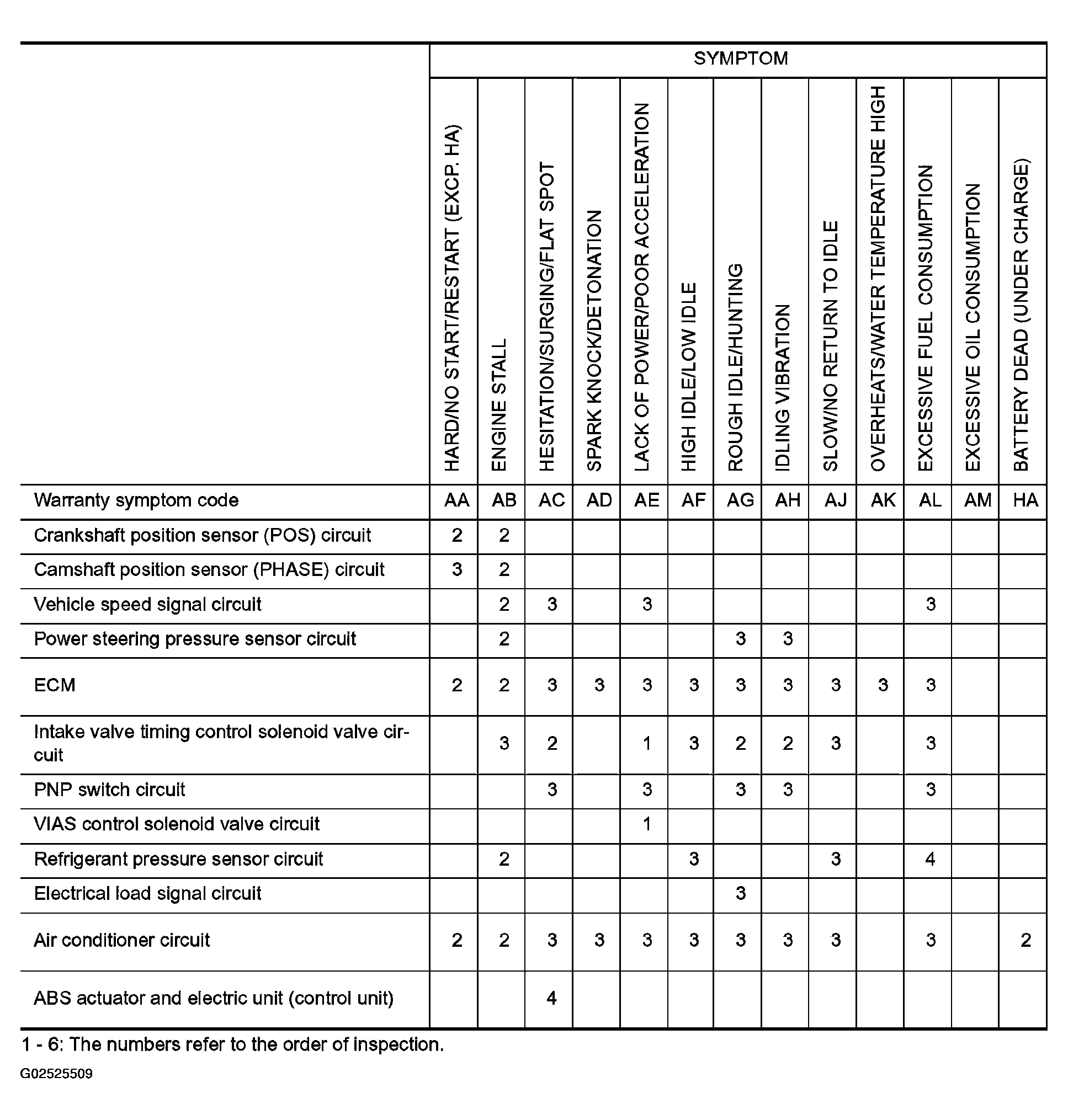

Fig 2: Engine Control System Symptom Matrix Chart (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
