Home >> Nissan-Datsun >> 2005 >> Altima SE-R, Standard >> Repair and Diagnosis >> Transmission >> Clutch >> Clutch Master Cylinder >> Components >> Notes

Clutch Master Cylinder: Components: Notes

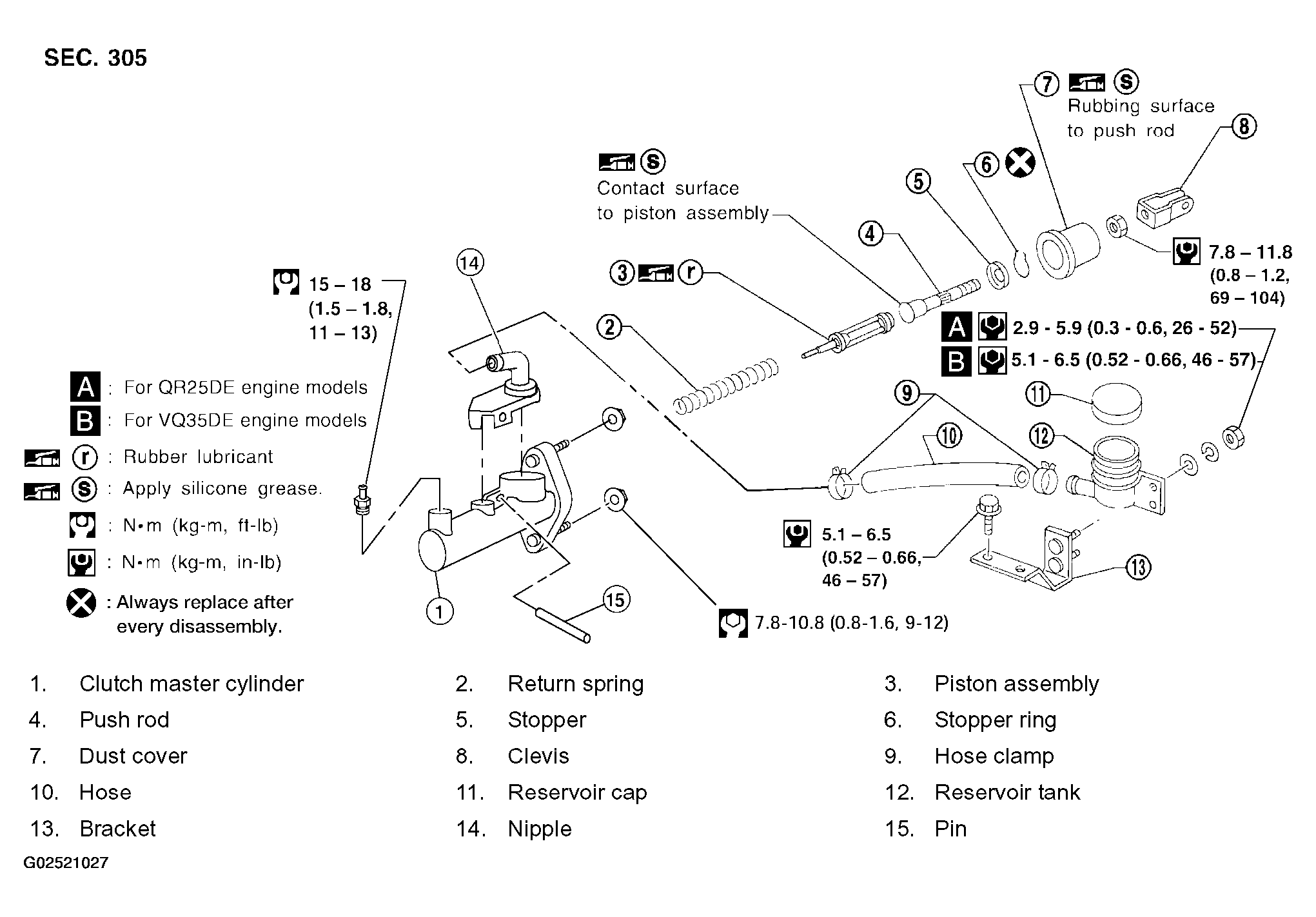

Fig 1: Identifying Clutch Master Cylinder Components

G02521027

Courtesy of NISSAN MOTOR CO., U.S.A.
