Removal and Installation: Notes

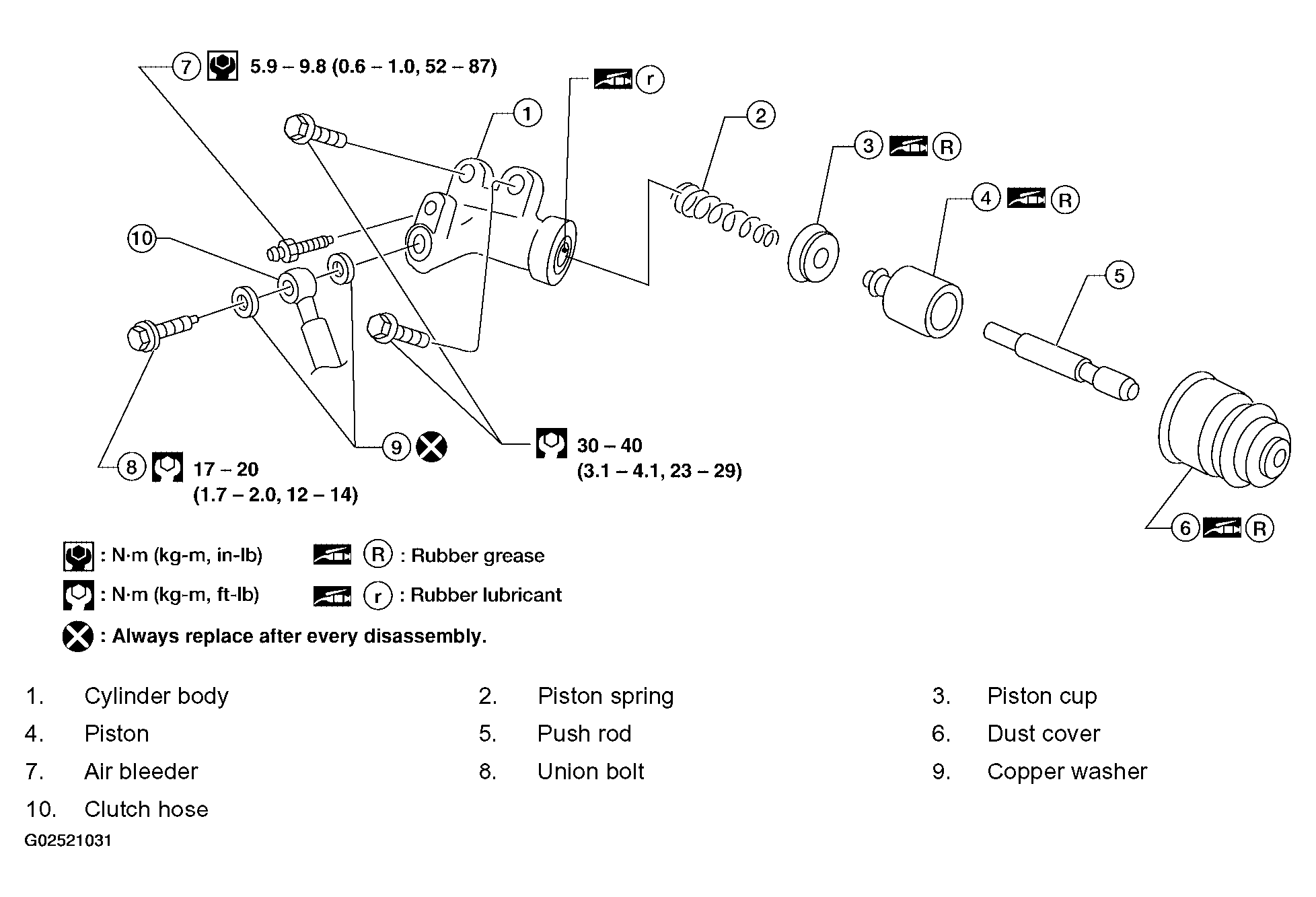

Fig 1: Identifying Operating Cylinder Components

G02521031

Courtesy of NISSAN MOTOR CO., U.S.A.
