ASCD Clutch Switch

  1. Turn ignition switch OFF.
  2. Disconnect ASCD clutch switch harness connector.
  3. Check harness continuity between ASCD clutch switch terminals 1 and 2 under the following conditions.
    ASCD CLUTCH SWITCH CONTINUITY

    Condition Continuity
    When clutch pedal: Fully released. Should exist.
    When clutch pedal: Depressed. Should not exist.

    If NG, adjust ASCD clutch switch installation, refer to CLUTCH PEDAL and perform step  3 again.

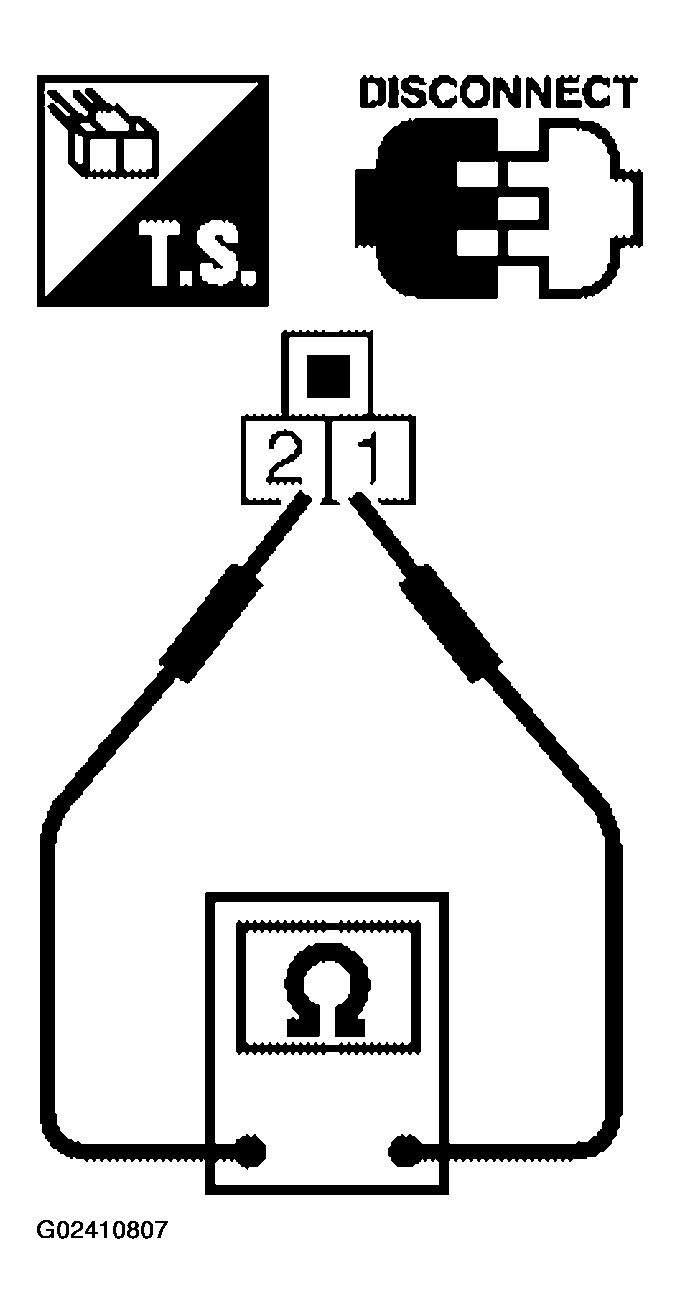

    Fig 1: Checking Continuity Between ASCD Clutch Switch Terminals
    G02410807Courtesy of NISSAN MOTOR CO., U.S.A.
