Stop Lamp Switch

  1. Turn ignition switch OFF.
  2. Disconnect stop lamp switch harness connector.
  3. Check harness continuity between stop lamp switch terminals 1 and 2 under the following conditions.
    STOP LAMP SWITCH CONTINUITY

    Condition Continuity
    When brake pedal: Fully released. Should not exist.
    When brake pedal: Depressed. Should exist.

    If NG, adjust stop lamp switch installation, refer to BRAKE PEDAL and perform step  3 again.

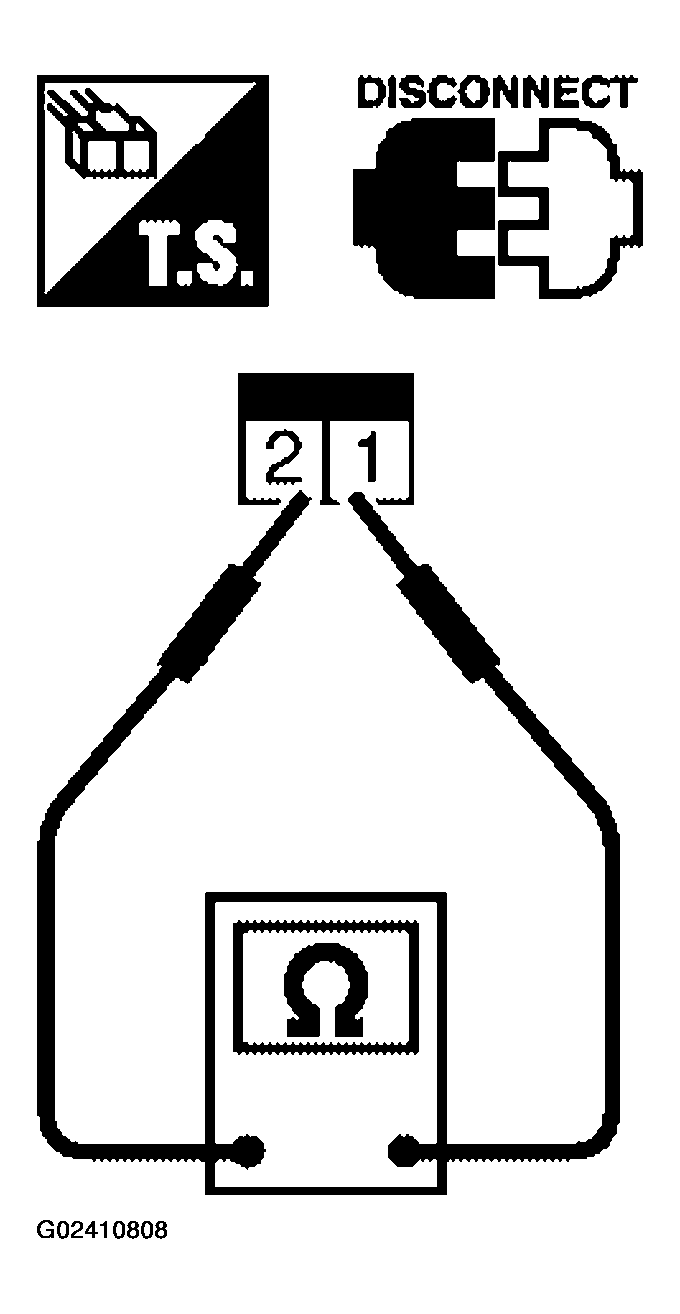

    Fig 1: Checking Continuity Between Stop Lamp Switch Terminals
    G02410808Courtesy of NISSAN MOTOR CO., U.S.A.
