CONSULT-II Reference Value in Data Monitor Mode

Specification data are reference value.

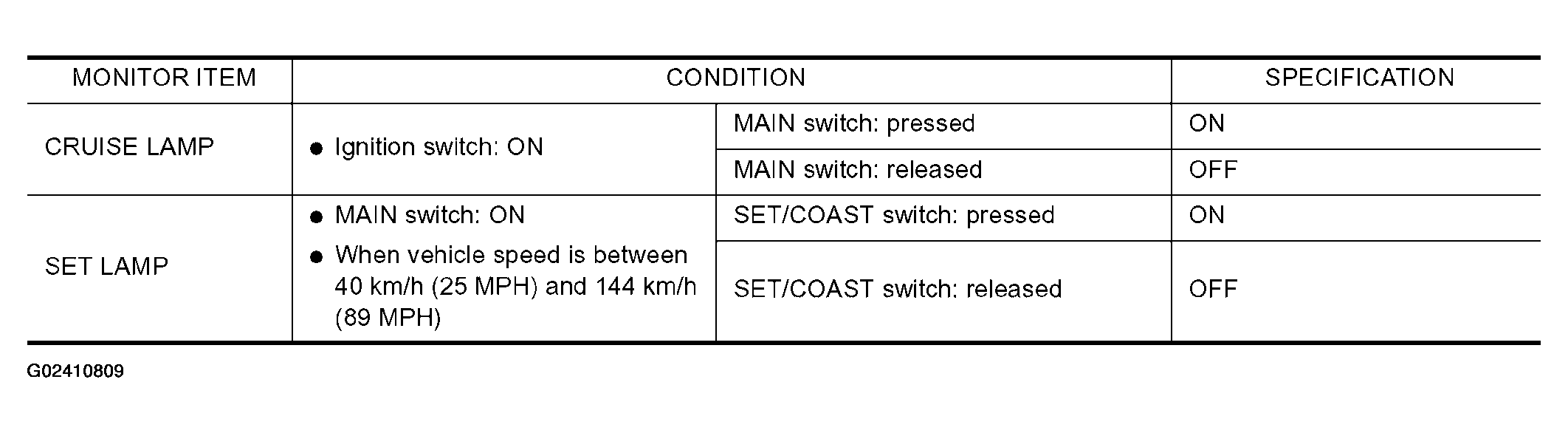

Fig 1: CONSULT-II Data Monitor Mode - Reference Value Chart

G02410809

Courtesy of NISSAN MOTOR CO., U.S.A.
