Diagnostic Procedure

CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten four ground screws on the body.
  Refer to GROUND INSPECTION .

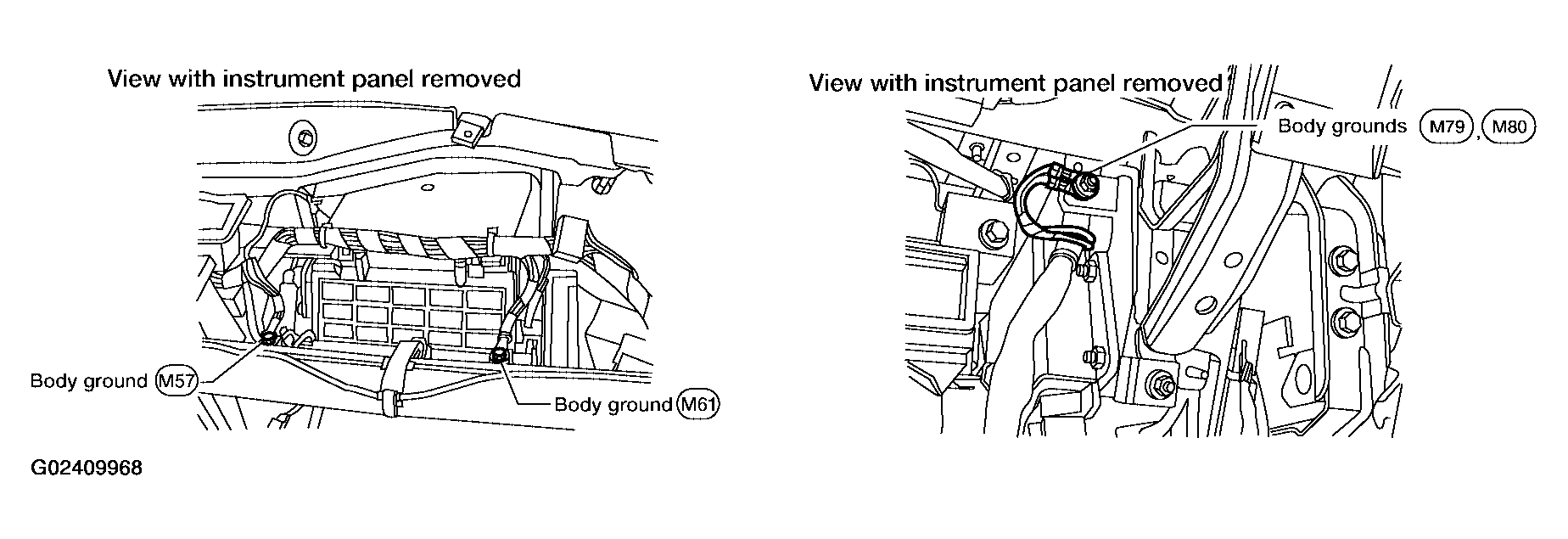

  Fig 1: Checking Ground Connections
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
- OK: GO TO 2.
- NG: Repair or replace ground connections.
CHECK ENGINE COOLANT TEMPERATURE SENSOR
Refer to COMPONENT INSPECTION .

OK or NG
- OK: GO TO 3.
- NG: Replace engine coolant temperature sensor.
CHECK THERMOSTAT OPERATION
When the engine is cold [lower than 70°C (158°F)] condition, grasp lower radiator hose and confirm the engine coolant does not flow.

OK or NG
- OK: GO TO 4.
- NG: Repair or replace thermostat. Refer to THERMOSTAT AND THERMOSTAT HOUSING .
CHECK INTERMITTENT INCIDENT
Refer to TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT .

Refer to WIRING DIAGRAM - ECTS .
- INSPECTION END
