Home >> Nissan-Datsun >> 2005 >> Maxima SL >> Repair and Diagnosis >> Engine Performance >> Engine Control System >> DTC P1706: PNP Switch >> Overall Function Check >> With GST

With GST

  1. Turn ignition switch ON.
  2. Check voltage between ECM terminal 102 (PNP switch signal) and ground under the following conditions.
    ECM TERMINAL 102 (PNP SWITCH SIGNAL) AND GROUND VOLTAGE

    Condition (Gear position) Voltage V (Known good data)
    P and N position (A/T models) Neutral position (M/T models) Approx.0
    Except the above position BATTERY VOLTAGE (11 - 14 V)
  3. If NG, go to DIAGNOSTIC PROCEDURE .

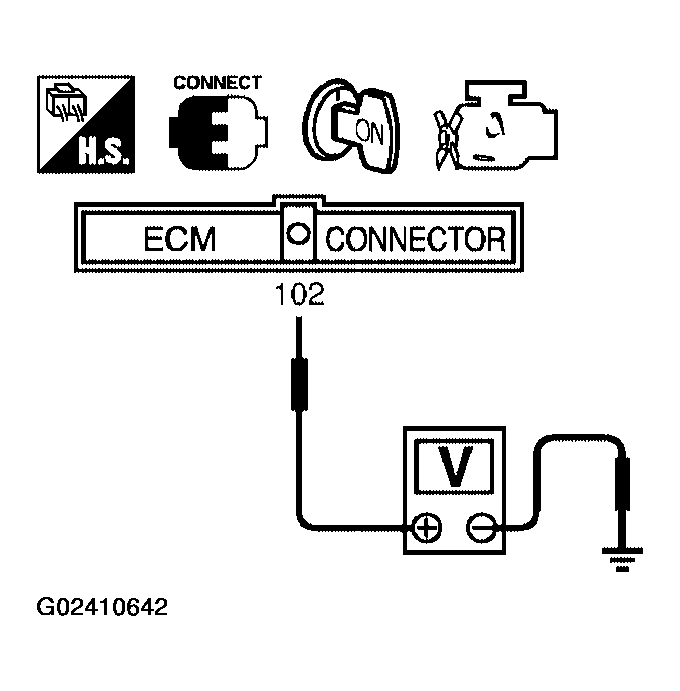

    Fig 1: Checking Voltage Between ECM Terminal 102 (PNP Switch Signal) & Ground
    G02410642Courtesy of NISSAN MOTOR CO., U.S.A.
