Accelerator Pedal Position Sensor

  1. Reconnect all harness connectors disconnected.
  2. Turn ignition switch ON.
  3. Check voltage between ECM terminals 106 (APP sensor 1 signal), 98 (APP sensor 2 signal) and ground under the following conditions.

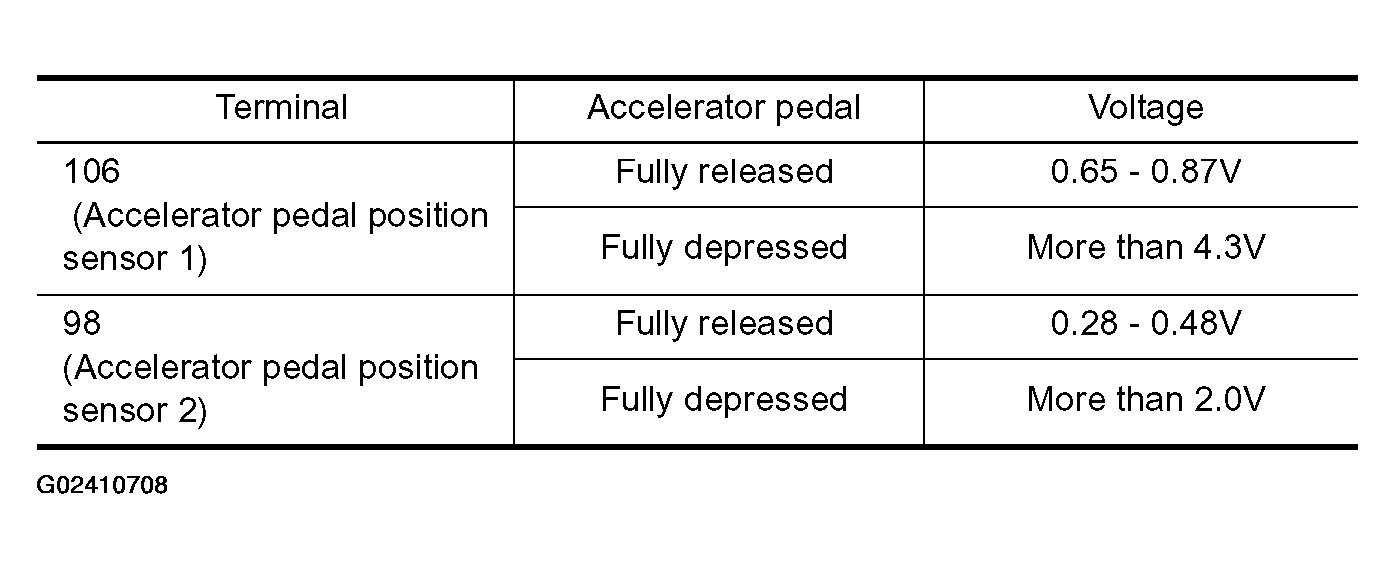

    Fig 1: Accelerator Pedal Position Sensor Voltage Chart
    G02410708Courtesy of NISSAN MOTOR CO., U.S.A.

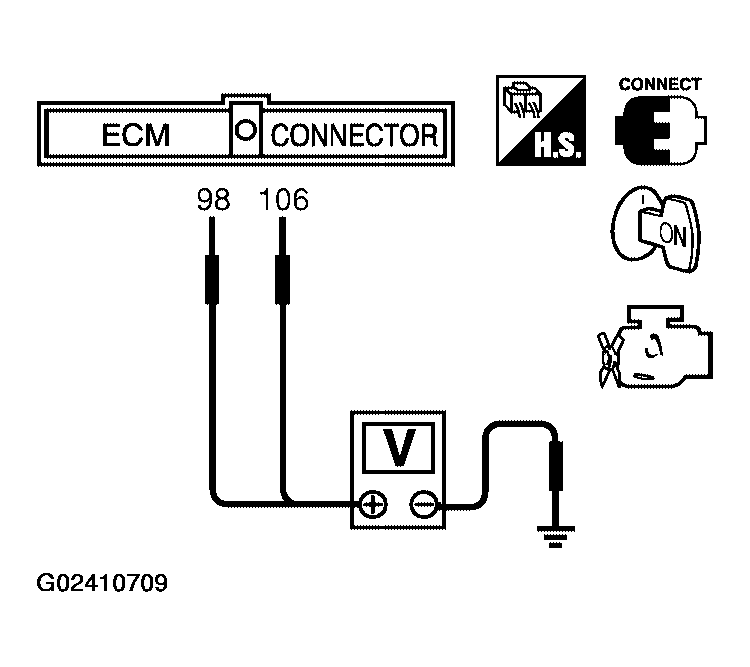

    Fig 2: Checking Voltage Between ECM Terminals & Ground
    G02410709Courtesy of NISSAN MOTOR CO., U.S.A.
  4. If NG, replace accelerator pedal assembly and go to next step.
  5. Perform ACCELERATOR PEDAL RELEASED POSITION LEARNING .
  6. Perform THROTTLE VALVE CLOSED POSITION LEARNING .
  7. Perform IDLE AIR VOLUME LEARNING .
