Component Inspection: Injector

  1. Disconnect injector harness connector.
  2. Check resistance between terminals as shown in the figure.

    Resistance: 13.5 - 17.5Ω [at 20°C (68°F)]

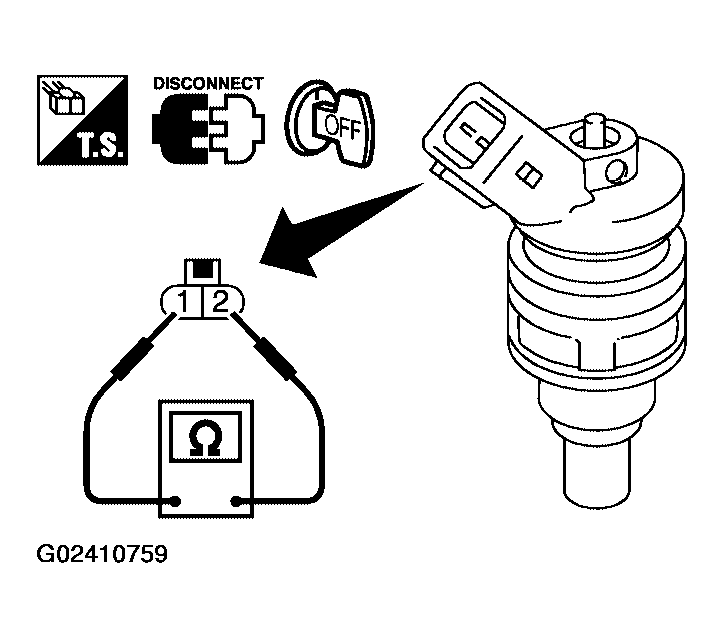

    Fig 1: Checking Resistance Between Injector Terminals
    G02410759Courtesy of NISSAN MOTOR CO., U.S.A.
