Vacuum Tank

  1. Disconnect vacuum hose connected to vacuum tank.
  2. Connect a vacuum pump to the center port of vacuum tank.
  3. Apply vacuum and make sure that vacuum exists at the other port.

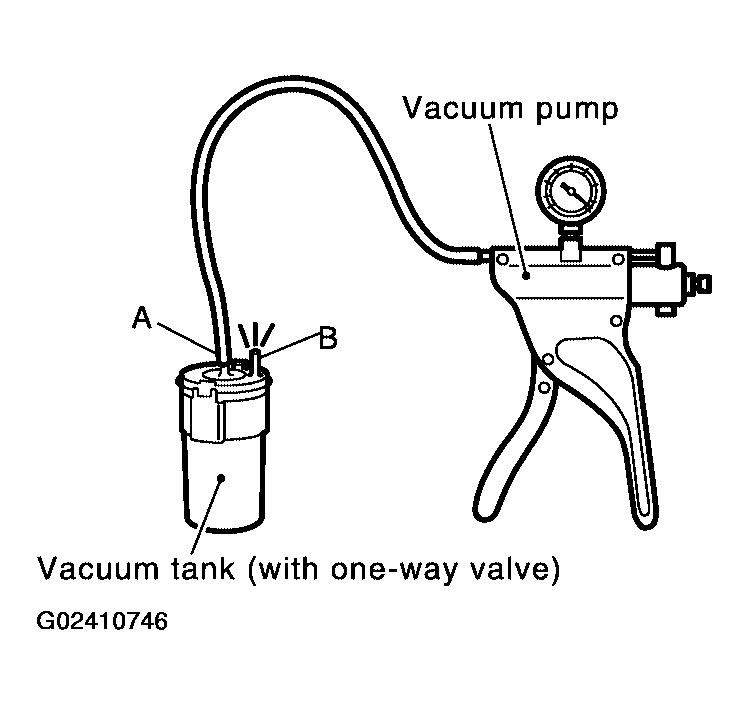

    Fig 1: Connecting Vacuum Pump To Center Port Of Vacuum Tank
    G02410746Courtesy of NISSAN MOTOR CO., U.S.A.
