Component Description

The EVAP control system pressure sensor detects pressure in the purge line. The sensor output voltage to the ECM increases as pressure increases.

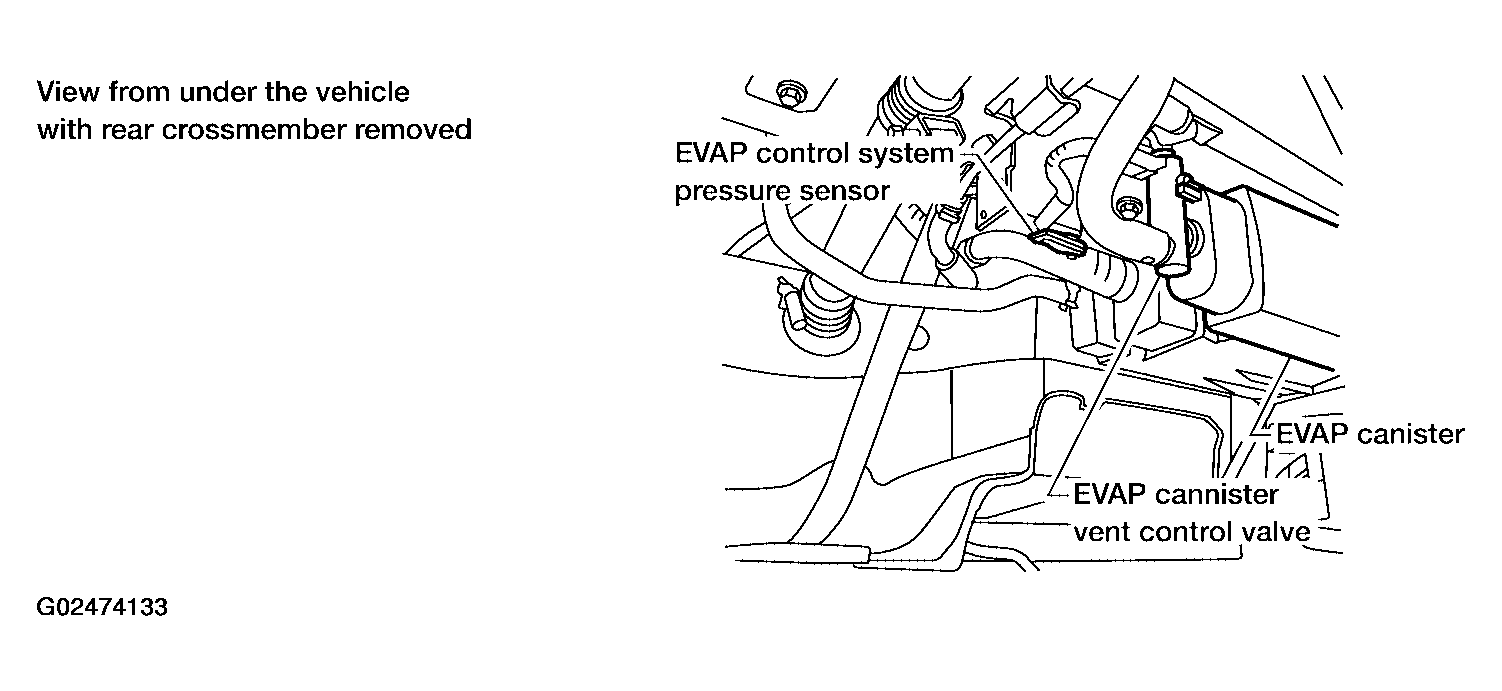

Fig 1: Locating EVAP Control System Pressure Sensor & Related Components

Courtesy of NISSAN MOTOR CO., U.S.A.

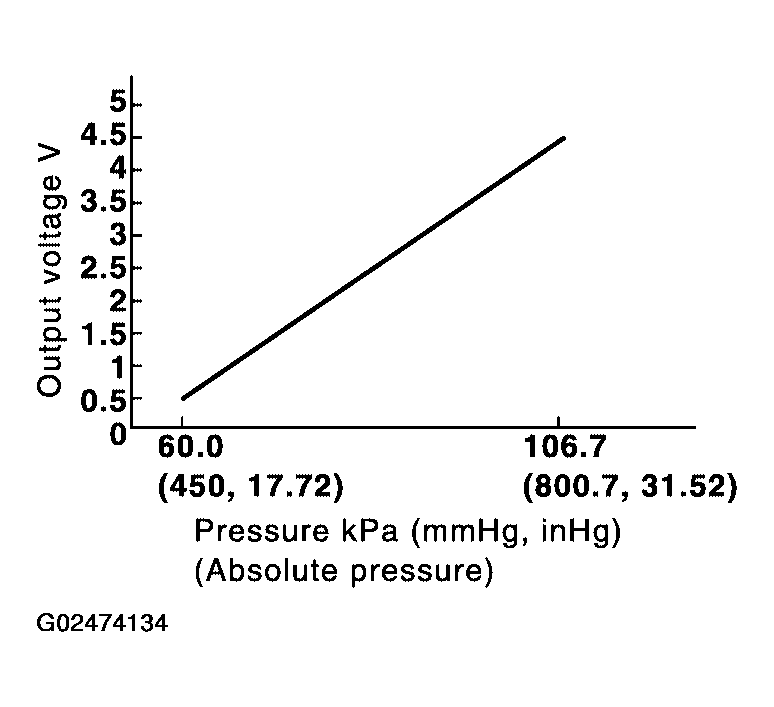

Fig 2: Voltage Pressure Graph

Courtesy of NISSAN MOTOR CO., U.S.A.
